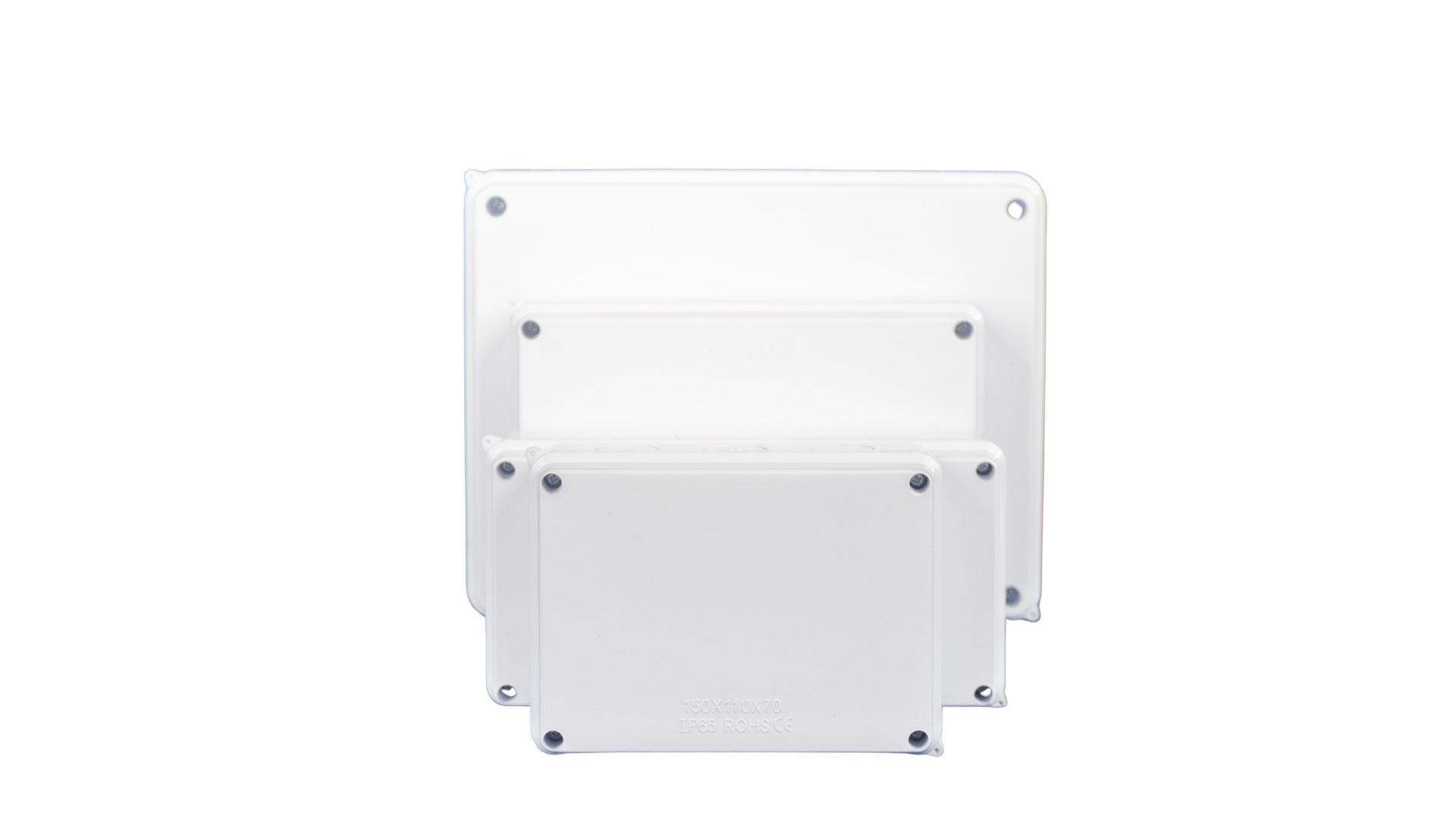

Waterproof box with reserved holes (HR-RT)

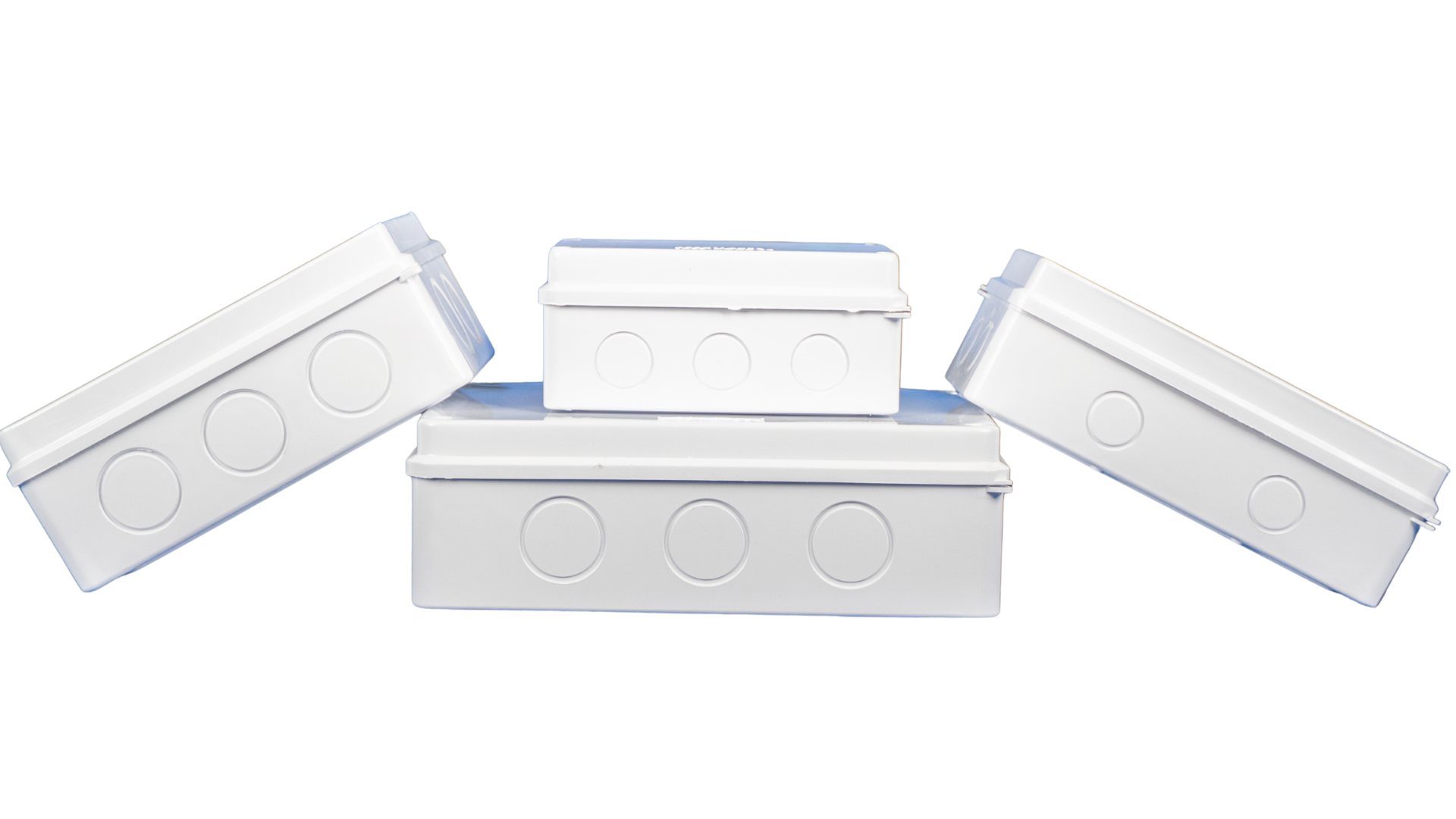

The HR-RT series features an innovative design with pre-reserved holes equipped with soft PVC stoppers. This allows for immediate and flexible cable entry while ensuring a high-grade seal against water and dust, perfect for outdoor and industrial setups.
- Robust ABS Construction: Made from high-quality ABS material, providing high resistance to impacts (IK07) and rust.
- Certified Protection: Rated IP65/IP55 according to IEC60529 standards, keeping internal circuits safe from moisture.
- Installation Efficiency: Reserved holes with PVC stoppers eliminate the need for drilling, ensuring a clean and professional cabling finish.
Product Details
Technical Data Table
| Model | L*W*H (mm) | IP Level | Hole QTY | Dia (mm) | G.W (kg) | Weight (g) |
|---|---|---|---|---|---|---|
| HR-RT | 50*50 | IP55 | 4 | 25 | 13.5 | 45.7 |
| HR-RT | 80*50 | IP55 | 4 | 25 | 14.7 | 69.3 |
| HR-RT | 80*80*50 | IP55 | 4 | 25 | 16 | 70.8 |
| HR-RT | 85*85*50 | IP55 | 7 | 25 | 17.2 | 87.2 |
| HR-RT | 100*100*70 | IP65 | 7 | 25 | 14.9 | 152.47 |
| HR-RT | 150*110*70 | IP65 | 10 | 25 | 15 | 221.2 |
| HR-RT | 150*150*70 | IP65 | 8 | 25 | 16.3 | 258.1 |
| HR-RT | 200*100*70 | IP65 | 8 | 25 | 16.3 | 257 |
| HR-RT | 200*155*80 | IP65 | 10 | 36 | 14.5 | 359.3 |
| HR-RT | 200*200*80 | IP65 | 12 | 36 | 18 | 455.5 |
| HR-RT | 255*200*80 | IP65 | 12 | 36 | 21.9 | 514 |
| HR-RT | 255*200*120 | IP65 | 12 | 36 | 23 | 665.1 |
| HR-RT | 300*250*120 | IP65 | 12 | 36 | 20.3 | 897 |
| HR-RT | 400*350*120 | IP65 | 16 | 36 | 15 | 1462.7 |
Key Features
- High Material Quality: Box crafted from premium ABS and stoppers from flexible PVC for superior durability.
- Impact Resistance: IK07 rating ensures mechanical strength against physical shocks.
- IP65/IP55 Compliance: Thoroughly tested to meet IEC60529 standards for waterproofing.
Typical Applications
- Industrial Power: Protect wiring junctions in factories and heavy-duty facilities.
- Public Works: Housing for CCTV components, lighting control, and sensors.
