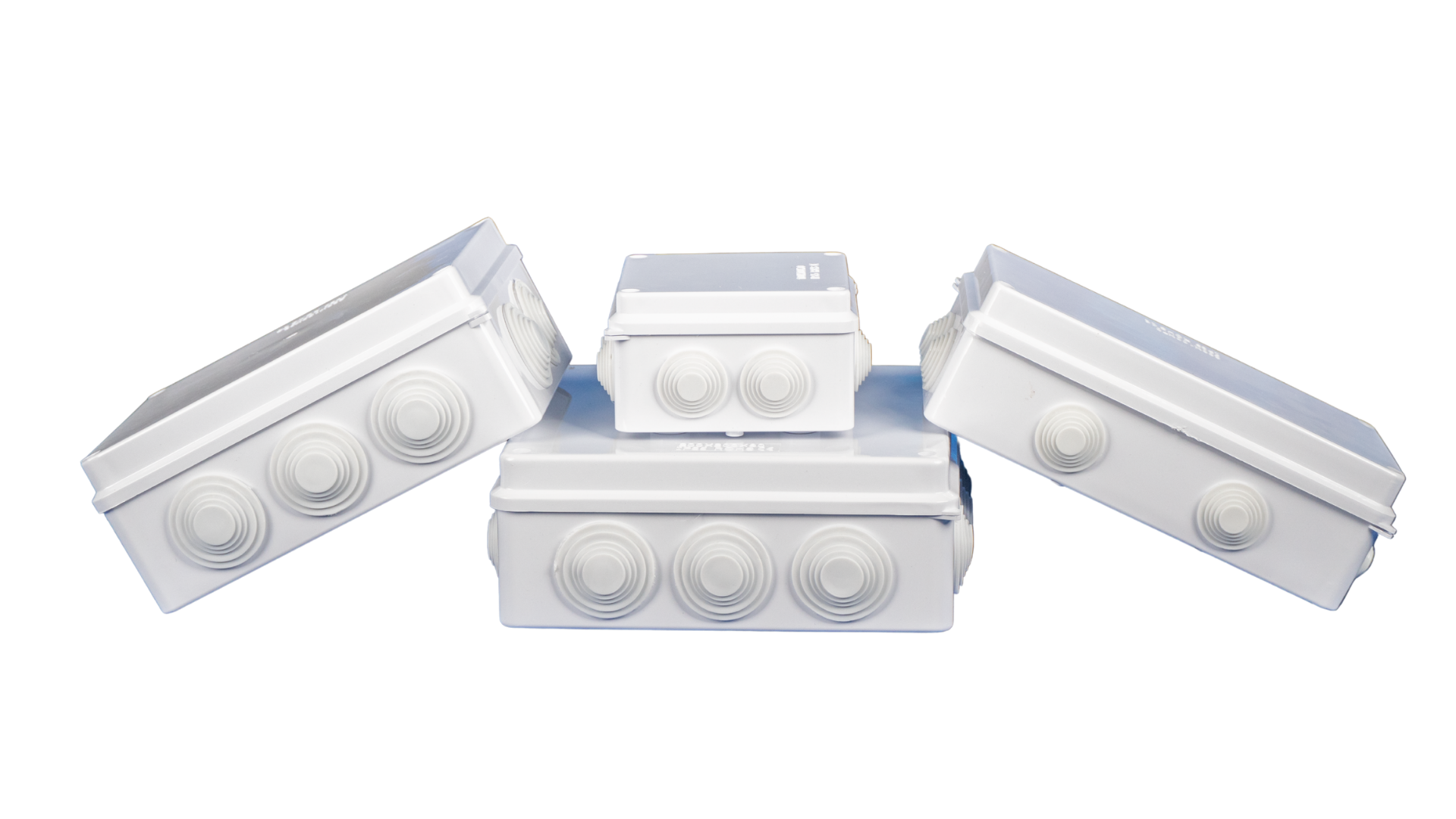

Junction box with rubber seal (HR-RA)
The HR-RA series features a high-performance design equipped with rubber seals for superior protection. Engineered for durability, these boxes are waterproof, dust-free, and shock-resistant, ensuring a long lifetime in demanding environments.
- Robust Materials: Constructed with high-grade ABS for the box and flexible PVC for the stopper.
- Advanced Protection: Rated IP65 (select models) and shock-resistant (IK07) to withstand harsh conditions.
- Reliability: Dust-free, rustproof, and designed according to IEC60529 standards.
Product Details
Technical Data Table
| Model | L*W*H (mm) | IP Level | Hole QTY | Dia (mm) | G.W (kg) | Unit weight (g) |
|---|---|---|---|---|---|---|
| HR-RA | 50*50 | IP55 | 4 | 25 | 14 | 45.7 |
| HR-RA | 80*50 | IP55 | 4 | 25 | 16 | 69.3 |
| HR-RA | 80*80*50 | IP55 | 4 | 25 | 16 | 70.8 |
| HR-RA | 85*85*50 | IP55 | 7 | 25 | 18 | 87.2 |
| HR-RA | 100*100*70 | IP65 | 7 | 25 | 17 | 152.47 |
| HR-RA | 150*110*70 | IP65 | 10 | 25 | 15 | 221.2 |
| HR-RA | 150*150*70 | IP65 | 8 | 25 | 17 | 258.1 |
| HR-RA | 200*100*70 | IP65 | 8 | 25 | 17 | 257 |
| HR-RA | 200*155*80 | IP65 | 10 | 36 | 16 | 359.3 |
| HR-RA | 200*200*80 | IP65 | 12 | 36 | 20 | 455.5 |
| HR-RA | 255*200*80 | IP65 | 12 | 36 | 23 | 514 |
| HR-RA | 255*200*120 | IP65 | 12 | 36 | 23 | 665.1 |
| HR-RA | 300*250*120 | IP65 | 12 | 36 | 19 | 897 |
| HR-RA | 400*350*120 | IP65 | 16 | 36 | 16 | 1462.7 |
Key Features
- Material Excellence: ABS Box + PVC Stopper for optimal durability and flexibility.
- Impact Protection: IK07 rating ensures resistance against mechanical shocks.
- Weather Resistance: IP65/IP55 waterproofing protects against water jets and dust ingress.
- Longevity: Rustproof and designed for a long operational lifetime.
Typical Applications
- Industrial Wiring: Secure connections in factories and processing plants.
- Outdoor Power: Ideal for outdoor lighting, construction sites, and external power distribution.
