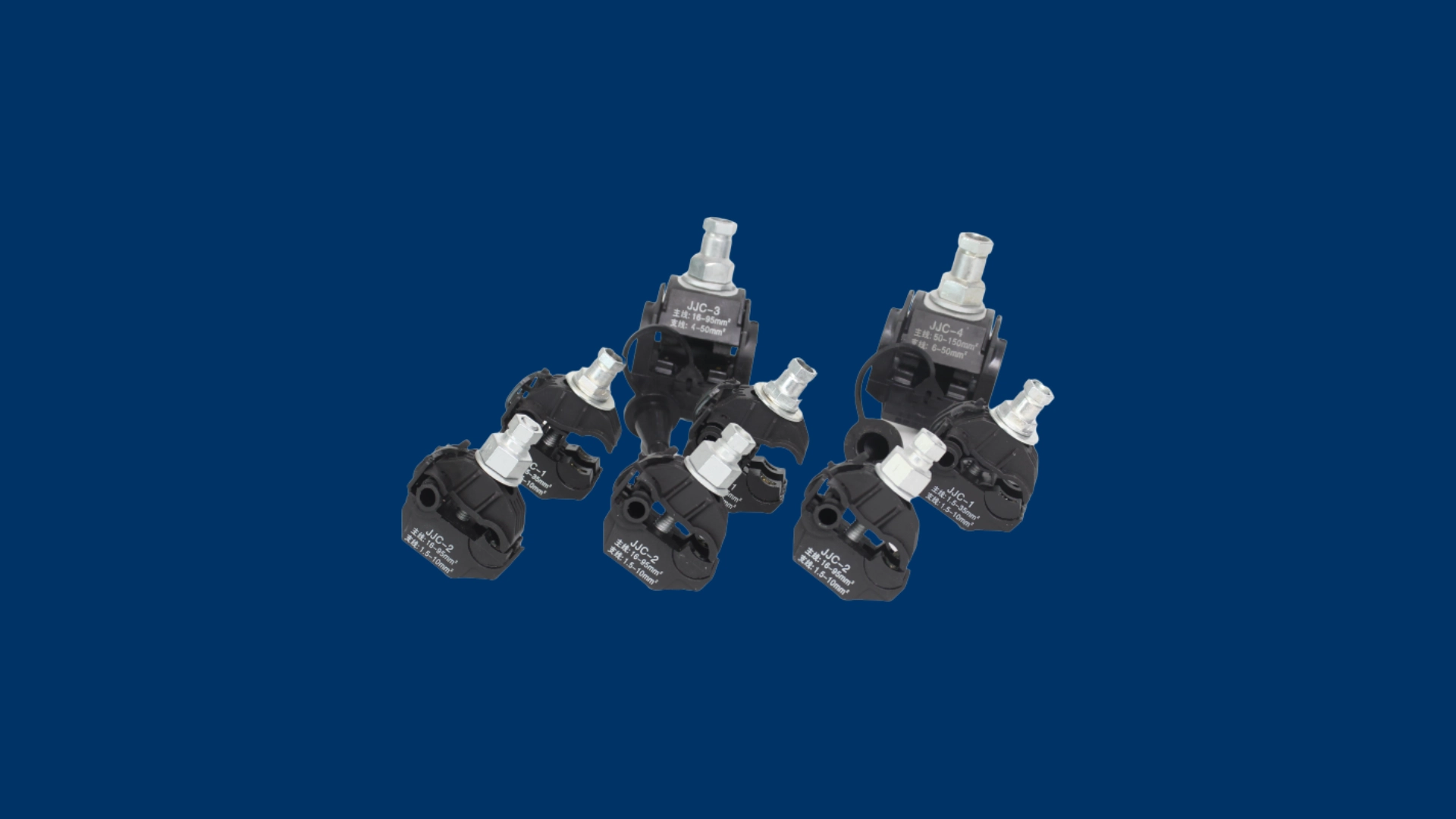

JJC Insulation Piercing Connector (IPC)
The JJC series of insulation piercing connectors provides a revolutionary solution for making fast and safe connections on low-voltage aerial bundled cables. It eliminates the need for stripping cable insulation, saving time and ensuring a reliable, waterproof seal.
- Safety and Speed: The piercing teeth create a secure electrical connection without damaging the cable's integrity, and installation is quick and easy.
- Waterproof and Durable: The sealed design protects the connection from moisture, dust, and corrosion, ensuring long-term performance.
- Versatile Application: Suitable for a wide range of main and branch cable cross-sections, making it highly adaptable for various installations.
Product Details
Technical Specifications
| Model | Main Line Section (mm²) | Branch Line Section (mm²) | Color | Material |
|---|---|---|---|---|
| JIC-888 | 0.75-6 | 0.75-6 | Black | Plastic |
| JIC-1 | 1.5-35 | 1.5-10 | Black | Plastic |

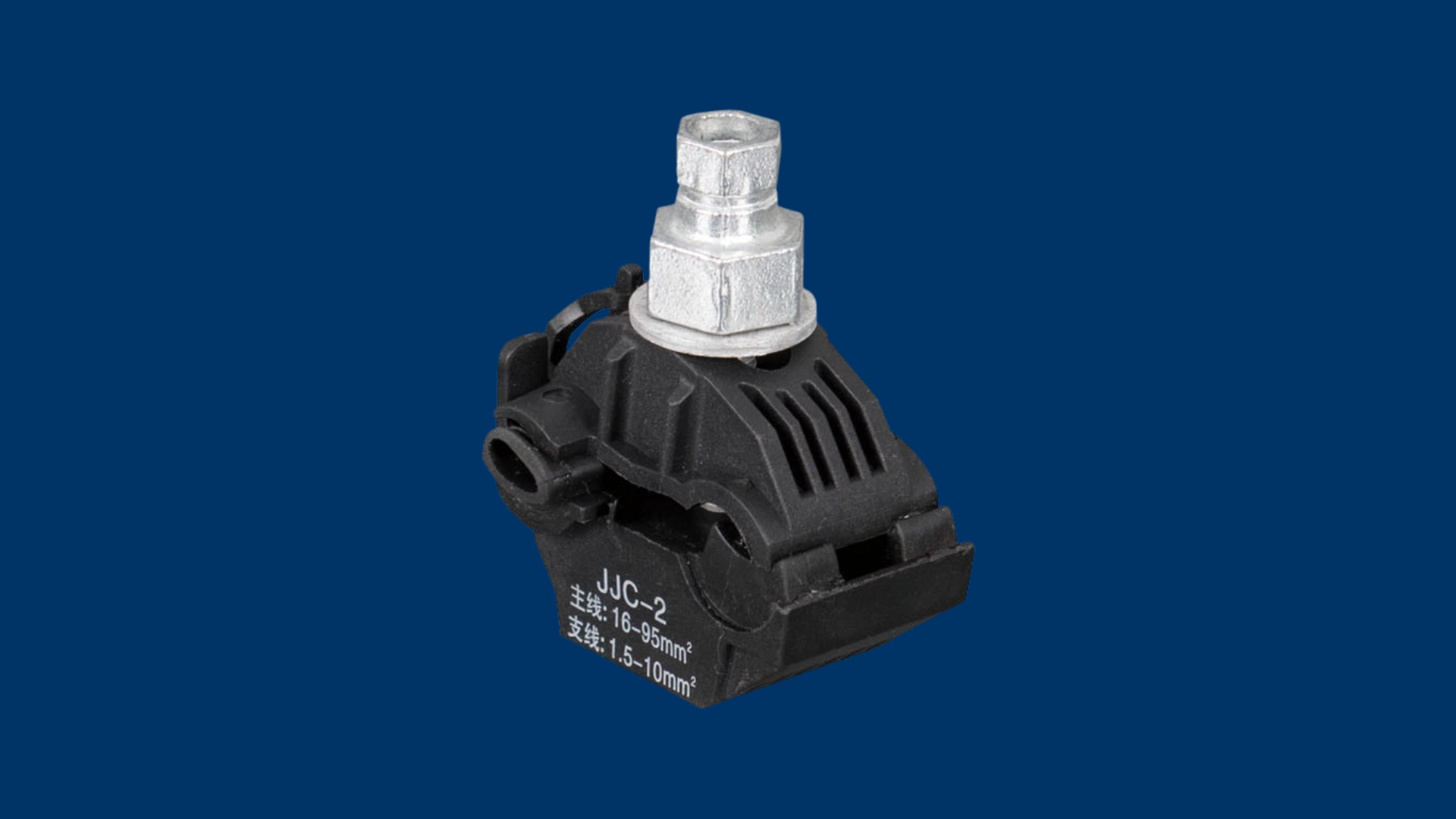

| JIC-2 | 16-95 | 1.5-10 | Black | Plastic |
| JIC-3(A) | 6-50 | 4-25 | Black | Plastic |

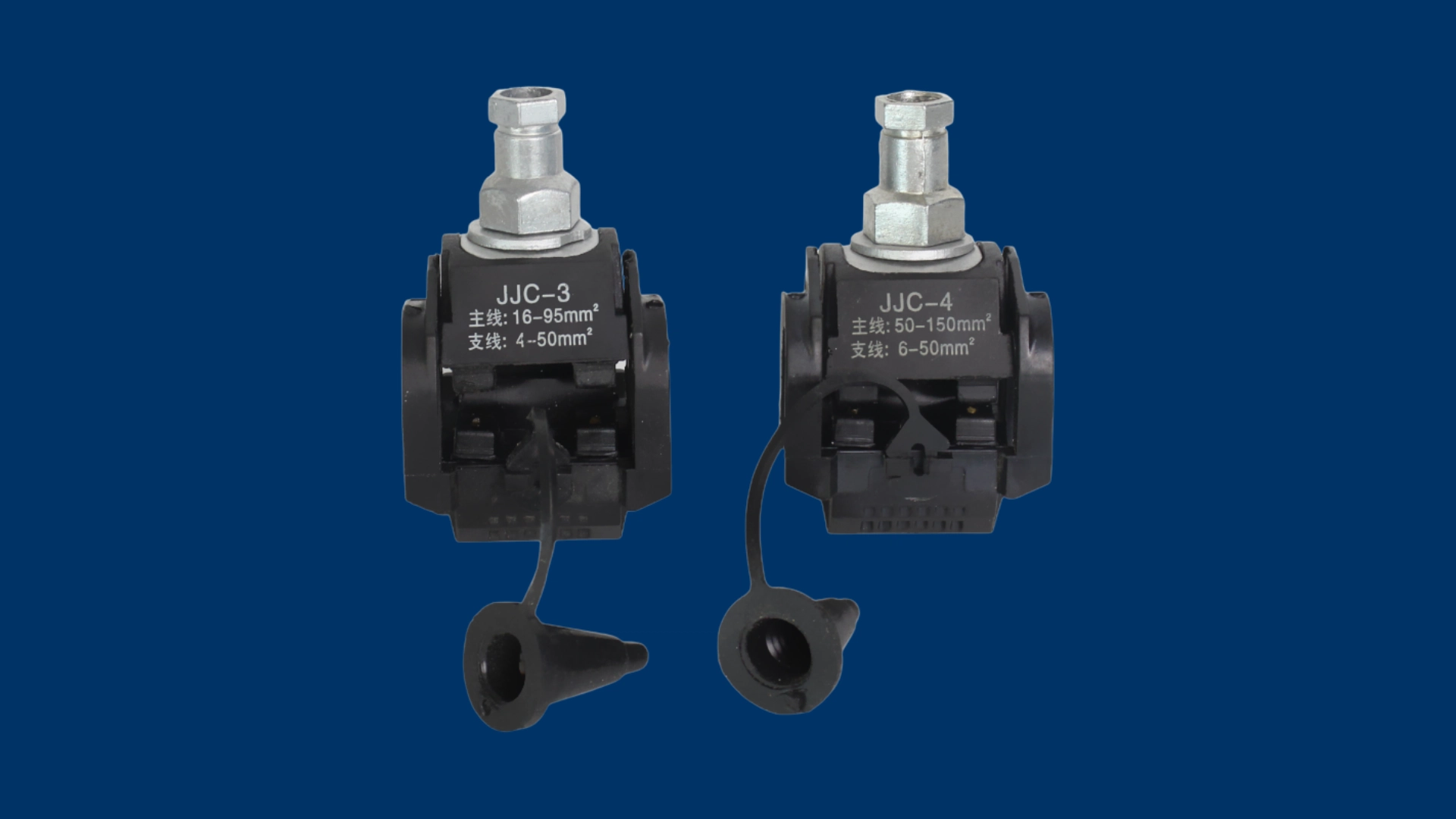

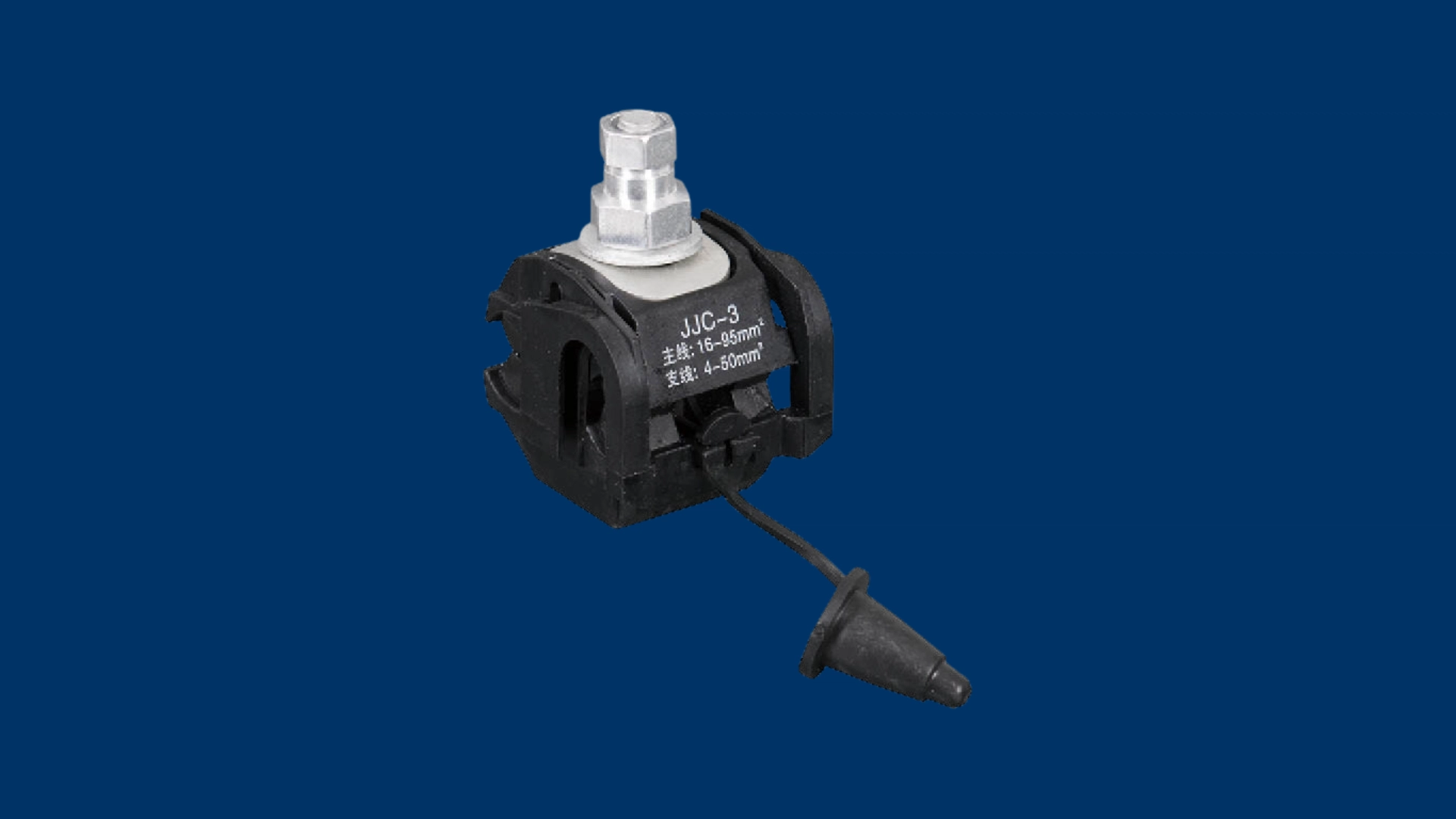

| JIC-3 | 16-95 | 4-35(50) | Black | Plastic |
| JIC-4 | 50-150 | 6-35(50) | Black | Plastic |
| JIC-5 | 25-95 | 25-95 | Black | Plastic |
| JIC-5-1 | 16-120 | 16-120 | Black | Plastic |
| JIC-6 | (35)50-150 | (35)50-150 | Black | Plastic |
| JIC-7 | 120-240 | 25-120 | Black | Plastic |
| JIC-7-1 | 150-240 | 10-25 | Black | Plastic |
Key Features
- Insulation Piercing: The connector's design allows for a secure electrical connection by piercing the cable insulation without the need for stripping.
- High Reliability: Provides a robust and durable connection that is resistant to environmental factors and mechanical stress.
- Waterproof Seal: The integrated waterproof material ensures a long-lasting, sealed connection, preventing moisture from affecting the electrical integrity.
- Easy Installation: Designed for quick and simple installation, significantly reducing time and labor costs.
Typical Applications
- Street Lighting: Ideal for branching off main power lines to streetlights and other outdoor installations.
- Power Distribution: Used in low-voltage aerial bundled cable networks for reliable and safe power distribution.
- Industrial Connections: Applied in industrial environments for branch connections that require a secure and sealed terminal.
