0.6/1kV Heat Shrink Cable Terminal
Our heat shrink cable terminal kits are designed to provide a secure and reliable termination for cables up to 1kV. They are ideal for applications requiring a complete seal and excellent insulation.
- Reliable Insulation: The heat-shrink technology creates a tight seal that protects against moisture, corrosion, and contaminants.
- Excellent Electrical Performance: Provides superior electrical insulation, ensuring system safety and stability.
- Easy Installation: The installation process is quick and simple, does not require special tools, and reduces working time.
Product Details
Technical Specifications
For Single-Core Cable
| Cable Specification (mm²) | Model | Insulation Tube Length (mm) | Color | Material |
|---|---|---|---|---|
| 10-16 | SX-1/1.0 | 600 | Black | Ethylene Propylene Diene Monomer |
| 25-50 | SX-1/1.1 | 600 | Black | Ethylene Propylene Diene Monomer |
| 70-120 | SX-1/1.2 | 600 | Black | Ethylene Propylene Diene Monomer |
| 150-240 | SX-1/1.3 | 600 | Black | Ethylene Propylene Diene Monomer |
| 300-400 | SX-1/1.4 | 600 | Black | Ethylene Propylene Diene Monomer |
| 500-630 | SX-1/1.5 | 600 | Black | Ethylene Propylene Diene Monomer |

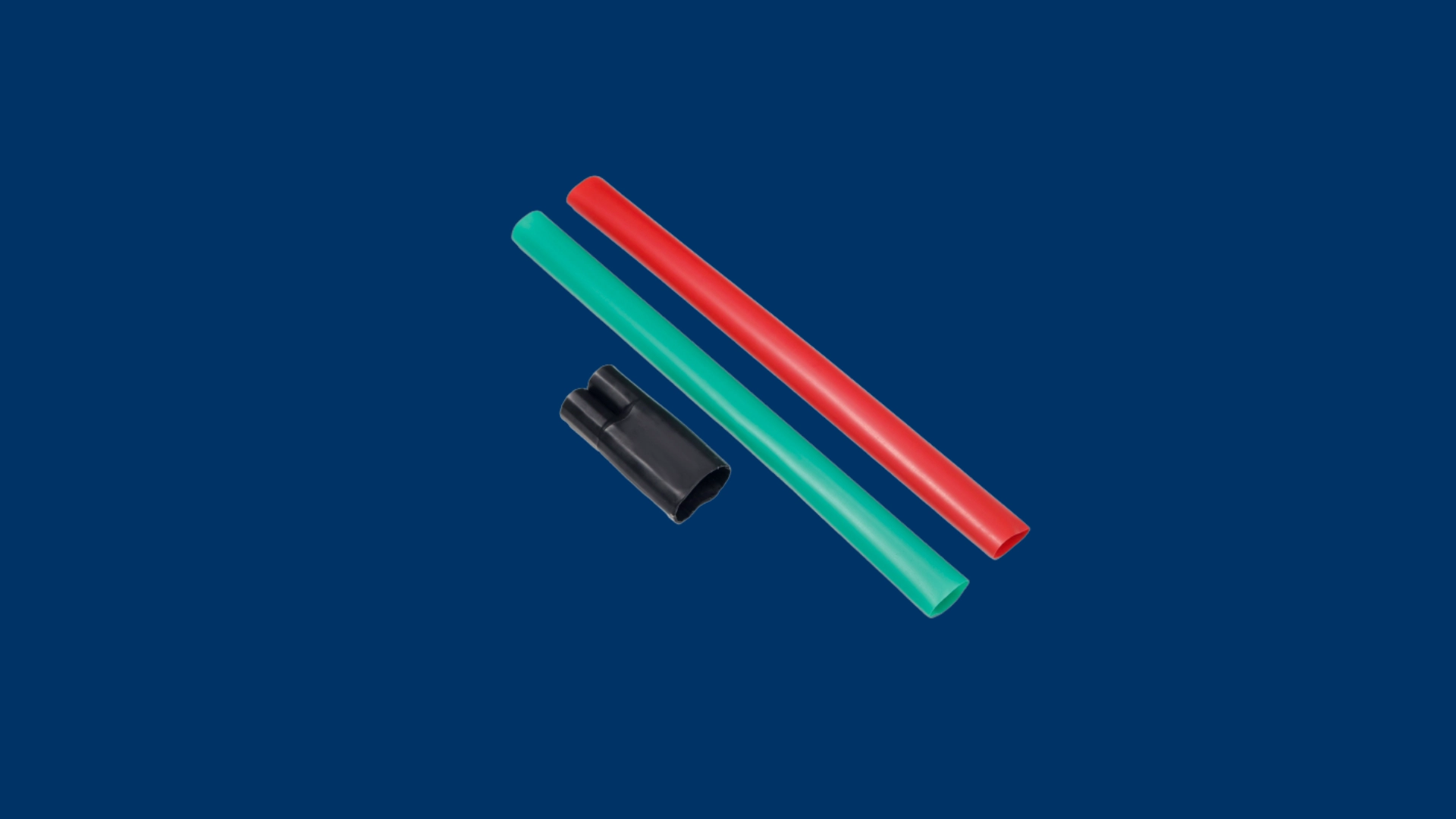

For Two-Core Cable
| Cable Specification (mm²) | Model | Insulation Tube Length (mm) | Color | Material |
|---|---|---|---|---|
| 10-16 | SX-1/2.0 | 600 | Red + Green | Ethylene Propylene Diene Monomer |
| 25-50 | SX-1/2.1 | 600 | Red + Green | Ethylene Propylene Diene Monomer |
| 70-120 | SX-1/2.2 | 600 | Red + Green | Ethylene Propylene Diene Monomer |
| 150-240 | SX-1/2.3 | 600 | Red + Green | Ethylene Propylene Diene Monomer |
| 300-400 | SX-1/2.4 | 600 | Red + Green | Ethylene Propylene Diene Monomer |
| 500-630 | SX-1/2.5 | 600 | Red + Green | Ethylene Propylene Diene Monomer |

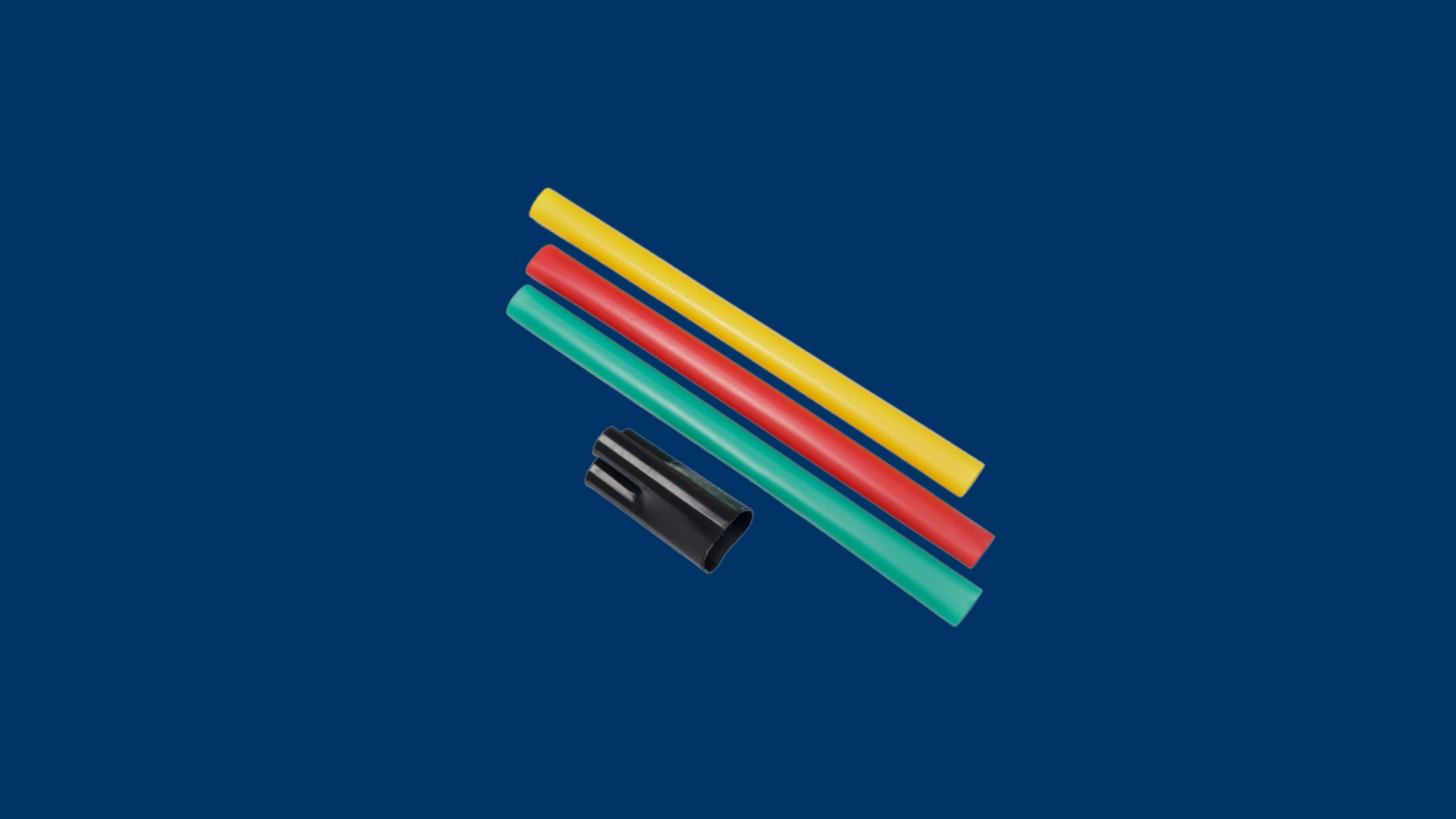

For Three-Core Cable
| Cable Specification (mm²) | Model | Insulation Tube Length (mm) | Color | Material |
|---|---|---|---|---|
| 10-16 | SX-1/3.0 | 600 | Red + Green + Yellow | Ethylene Propylene Diene Monomer |
| 25-50 | SX-1/3.1 | 600 | Red + Green + Yellow | Ethylene Propylene Diene Monomer |
| 70-120 | SX-1/3.2 | 600 | Red + Green + Yellow | Ethylene Propylene Diene Monomer |
| 150-240 | SX-1/3.3 | 600 | Red + Green + Yellow | Ethylene Propylene Diene Monomer |
| 300-400 | SX-1/3.4 | 600 | Red + Green + Yellow | Ethylene Propylene Diene Monomer |
| 500-630 | SX-1/3.5 | 600 | Red + Green + Yellow | Ethylene Propylene Diene Monomer |

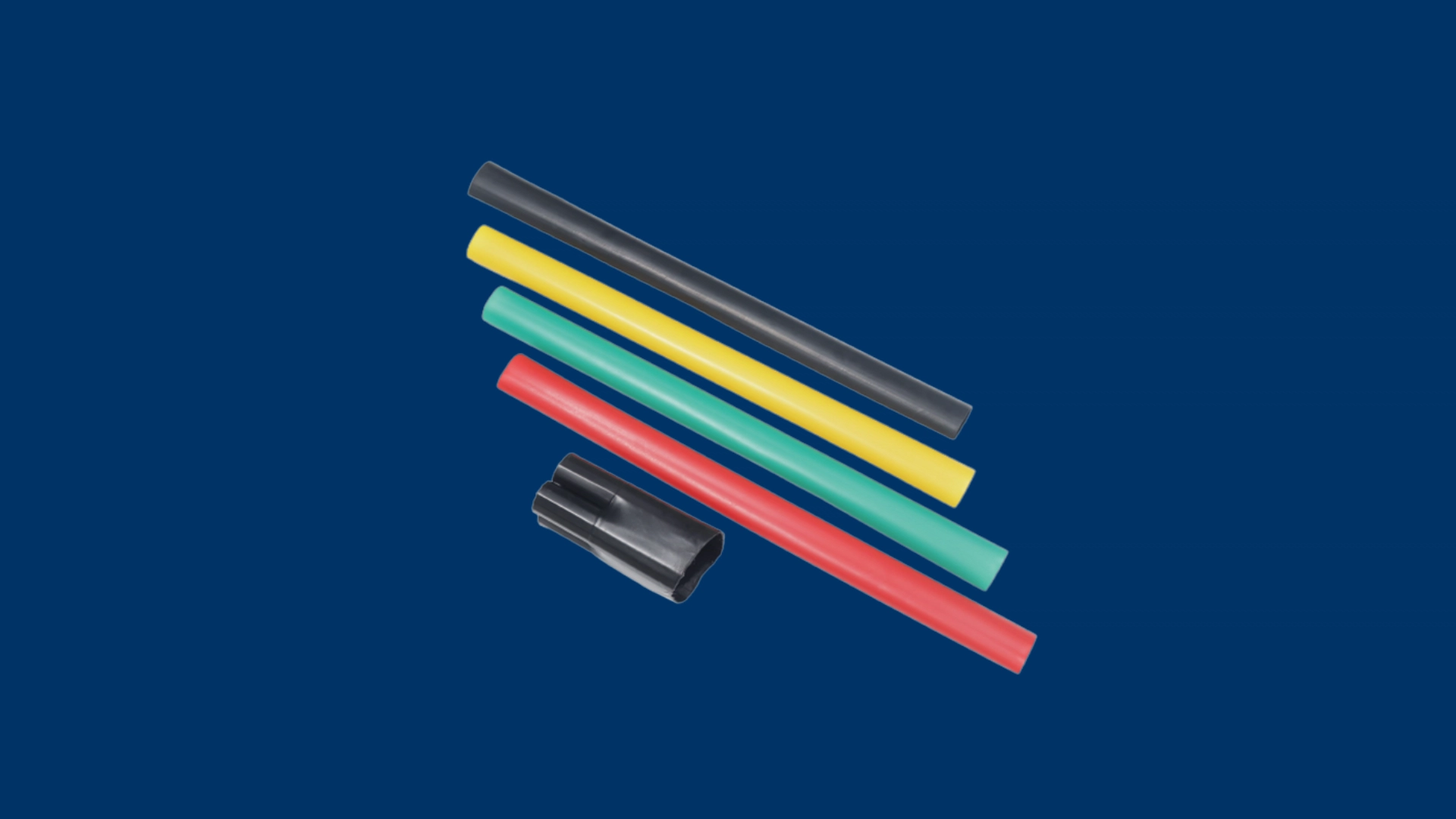

For Four-Core Cable
| Cable Specification (mm²) | Model | Insulation Tube Length (mm) | Color | Material |
|---|---|---|---|---|
| 10-16 | SX-1/4.0 | 600 | Red + Green + Yellow + Yellow | Ethylene Propylene Diene Monomer |
| 25-50 | SX-1/4.1 | 600 | Red + Green + Yellow + Yellow | Ethylene Propylene Diene Monomer |
| 70-120 | SX-1/4.2 | 600 | Red + Green + Yellow + Yellow | Ethylene Propylene Diene Monomer |
| 150-240 | SX-1/4.3 | 600 | Red + Green + Yellow + Yellow | Etileno Propileno Dieno Monómero |
| 300-400 | SX-1/4.4 | 600 | Red + Green + Yellow + Yellow | Ethylene Propylene Diene Monomer |
| 500-630 | SX-1/4.5 | 600 | Red + Green + Yellow + Yellow | Ethylene Propylene Diene Monomer |

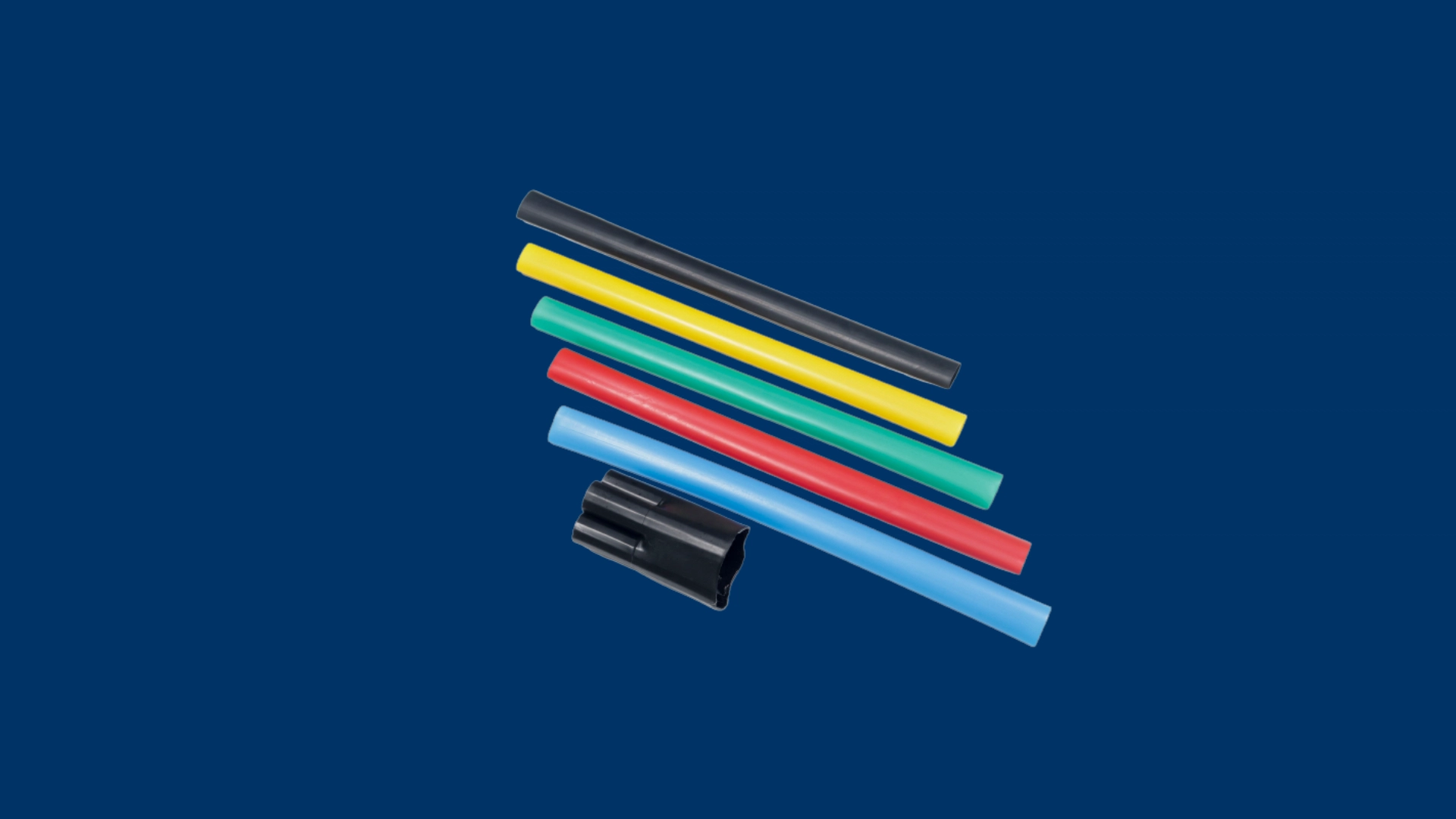

For Five-Core Cable
| Cable Specification (mm²) | Model | Insulation Tube Length (mm) | Color | Material |
|---|---|---|---|---|
| 10-16 | SX-1/5.0 | 600 | Red + Green + Yellow + Yellow + Blue | Ethylene Propylene Diene Monomer |
| 25-50 | SX-1/5.1 | 600 | Red + Green + Yellow + Yellow + Blue | Ethylene Propylene Diene Monomer |
| 70-120 | SX-1/5.2 | 600 | Red + Green + Yellow + Yellow + Blue | Ethylene Propylene Diene Monomer |
| 150-240 | SX-1/5.3 | 600 | Red + Green + Yellow + Yellow + Blue | Ethylene Propylene Diene Monomer |
| 300-400 | SX-1/5.4 | 600 | Red + Green + Yellow + Yellow + Blue | Ethylene Propylene Diene Monomer |
| 500-630 | SX-1/5.5 | 600 | Red + Green + Yellow + Yellow + Blue | Ethylene Propylene Diene Monomer |
Key Features
- Watertight Seal: It shrinks with heat to create a durable, watertight seal, protecting against moisture and corrosion.
- High Electrical Performance: Provides superior electrical insulation and reliable mechanical strength for connections up to 1kV.
- Mechanical Protection: The thick and robust layer protects joints from impacts, abrasion, and vibrations.
Typical Applications
- Industrial Installations: Ideal for terminating cables in control panels, motors, and distribution systems in industrial environments.
- Transportation Systems: Used for cable termination for signaling, lighting, and power equipment in tunnels and railways.
- Commercial and Residential Buildings: Applied in the connection and protection of cables in splice boxes and electrical panels.
