0.6/1kV Heat Shrink Intermediate Joint
Our heat shrink intermediate joint kits are designed to provide a secure and reliable connection between cables up to 1kV. They are perfect for applications that require a durable, moisture-proof, and well-insulated splice.
- Watertight Seal: It shrinks with heat to create a durable, watertight seal, protecting against moisture and corrosion.
- High Electrical Performance: Provides superior electrical insulation and reliable mechanical strength for connections up to 1kV.
- Easy Installation: The installation process is quick and simple, does not require special tools, and reduces working time.
Product Details
Technical Specifications
For Single-Core Cable
| Cable Specification (mm²) | Model | Color | Material |
|---|---|---|---|
| 10-16 | JSX-1/1.0 | Black | Ethylene Propylene Diene Monomer |
| 25-50 | JSX-1/1.1 | Black | Ethylene Propylene Diene Monomer |
| 70-120 | JSX-1/1.2 | Black | Ethylene Propylene Diene Monomer |
| 150-240 | JSX-1/1.3 | Black | Ethylene Propylene Diene Monomer |
| 300-400 | JSX-1/1.4 | Black | Ethylene Propylene Diene Monomer |
| 500-630 | JSX-1/1.5 | Black | Ethylene Propylene Diene Monomer |

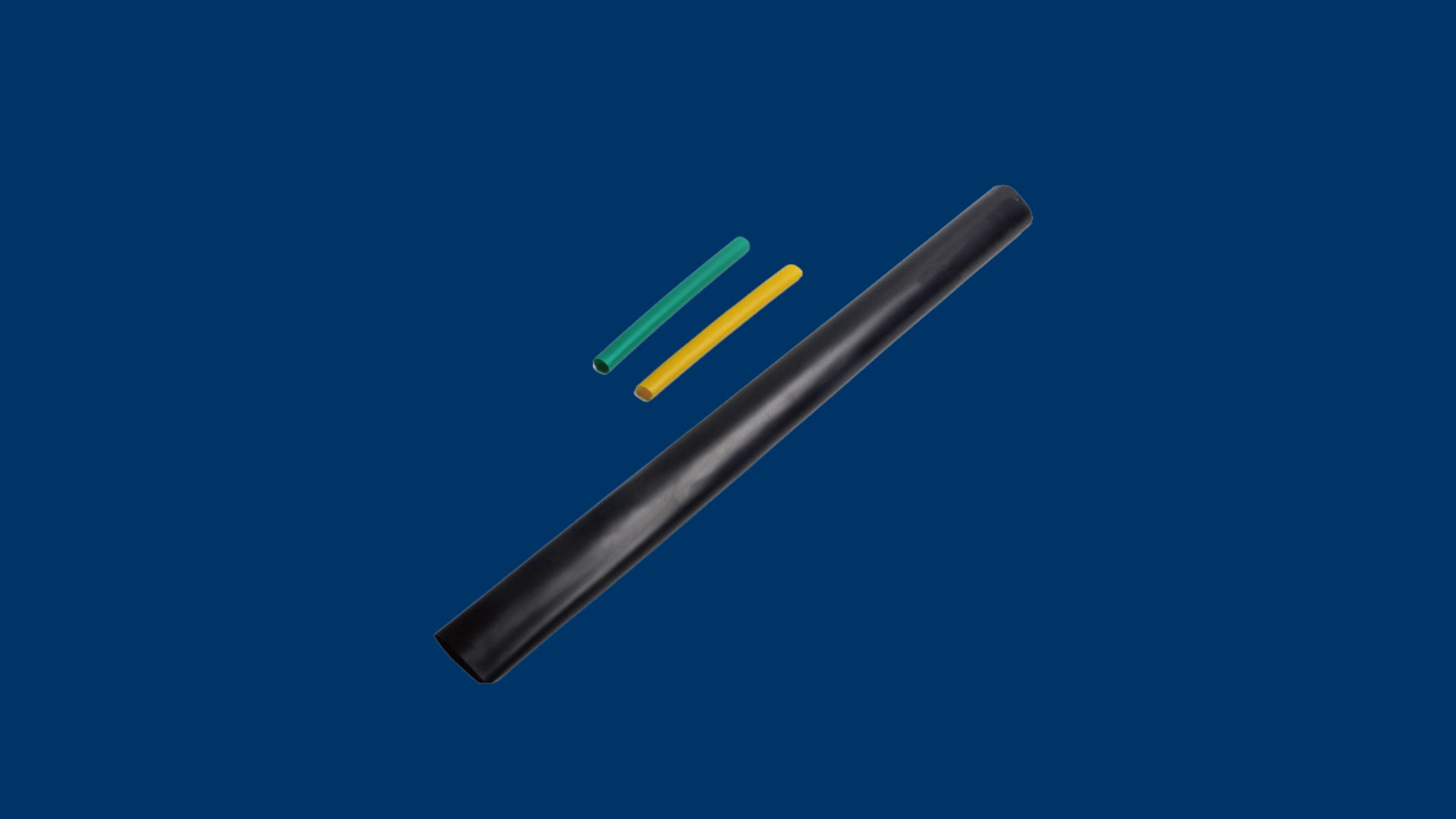

For Two-Core Cable
| Cable Specification (mm²) | Model | Color | Material |
|---|---|---|---|
| 10-16 | JSX-1/2.0 | Green + Yellow + Black | Ethylene Propylene Diene Monomer |
| 25-50 | JSX-1/2.1 | Green + Yellow + Black | Ethylene Propylene Diene Monomer |
| 70-120 | JSX-1/2.2 | Green + Yellow + Black | Ethylene Propylene Diene Monomer |
| 150-240 | JSX-1/2.3 | Green + Yellow + Black | Ethylene Propylene Diene Monomer |
| 300-400 | JSX-1/2.4 | Green + Yellow + Black | Ethylene Propylene Diene Monomer |
| 500-630 | JSX-1/2.5 | Green + Yellow + Black | Ethylene Propylene Diene Monomer |

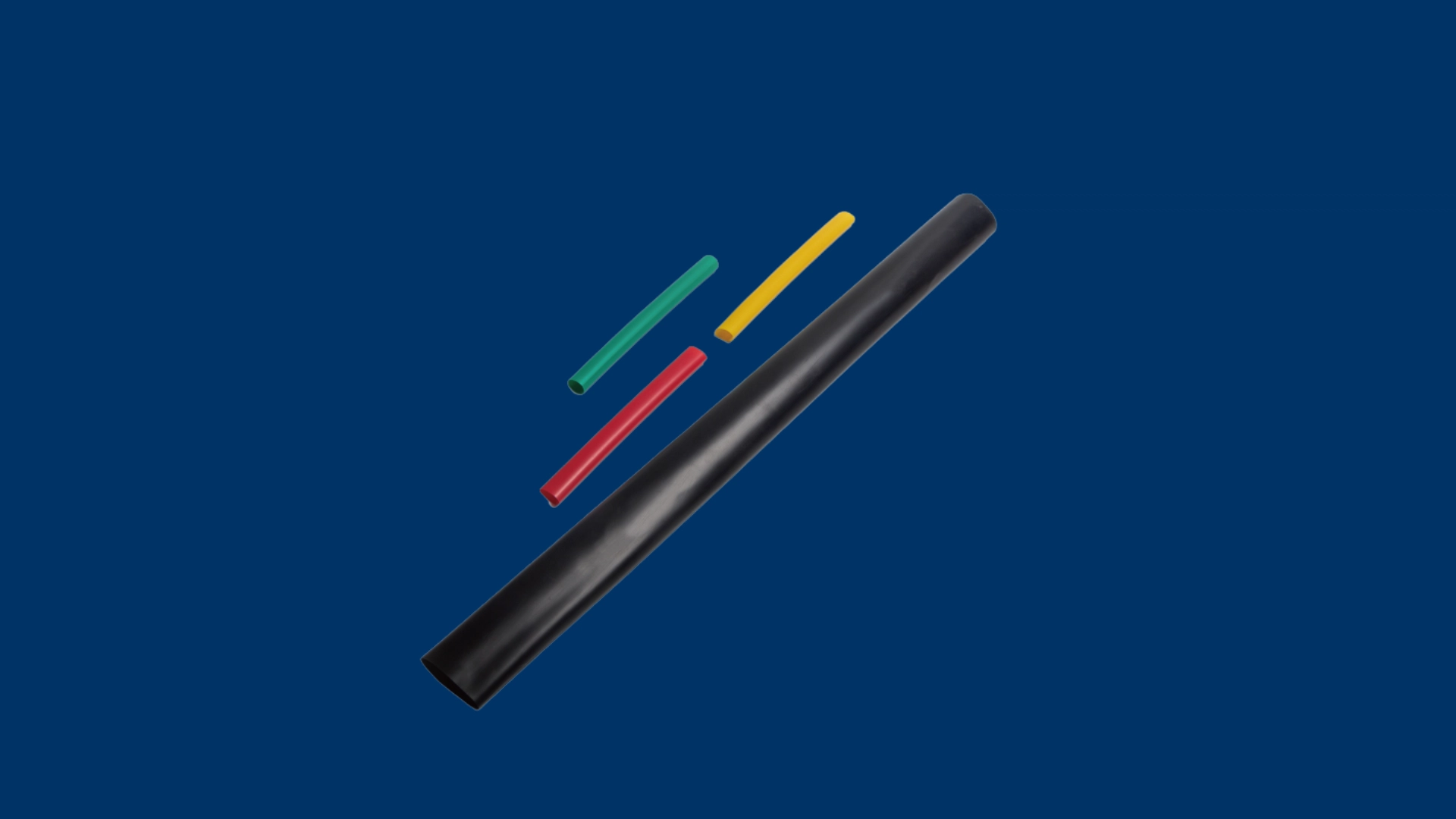

For Three-Core Cable
| Cable Specification (mm²) | Model | Color | Material |
|---|---|---|---|
| 10-16 | JSX-1/3.0 | Red + Green + Yellow + Black | Ethylene Propylene Diene Monomer |
| 25-50 | JSX-1/3.1 | Red + Green + Yellow + Black | Ethylene Propylene Diene Monomer |
| 70-120 | JSX-1/3.2 | Red + Green + Yellow + Black | Ethylene Propylene Diene Monomer |
| 150-240 | JSX-1/3.3 | Red + Green + Yellow + Black | Ethylene Propylene Diene Monomer |
| 300-400 | JSX-1/3.4 | Red + Green + Yellow + Black | Ethylene Propylene Diene Monomer |
| 500-630 | JSX-1/3.5 | Red + Green + Yellow + Black | Ethylene Propylene Diene Monomer |
For Four-Core Cable
| Cable Specification (mm²) | Model | Color | Material |
|---|---|---|---|
| 10-16 | JSX-1/4.0 | Red + Green + Yellow + Black | Ethylene Propylene Diene Monomer |
| 25-50 | JSX-1/4.1 | Red + Green + Yellow + Black | Ethylene Propylene Diene Monomer |
| 70-120 | JSX-1/4.2 | Red + Green + Yellow + Black | Ethylene Propylene Diene Monomer |
| 150-240 | JSX-1/4.3 | Red + Green + Yellow + Black | Ethylene Propylene Diene Monomer |
| 300-400 | JSX-1/4.4 | Red + Green + Yellow + Black | Ethylene Propylene Diene Monomer |
| 500-630 | JSX-1/4.5 | Red + Green + Yellow + Black | Ethylene Propylene Diene Monomer |
For Five-Core Cable
| Cable Specification (mm²) | Model | Color | Material |
|---|---|---|---|
| 10-16 | JSX-1/5.0 | Blue + Red + Green + Yellow + Black | Ethylene Propylene Diene Monomer |
| 25-50 | JSX-1/5.1 | Blue + Red + Green + Yellow + Black | Ethylene Propylene Diene Monomer |
| 70-120 | JSX-1/5.2 | Blue + Red + Green + Yellow + Black | Ethylene Propylene Diene Monomer |
| 150-240 | JSX-1/5.3 | Blue + Red + Green + Yellow + Black | Ethylene Propylene Diene Monomer |
| 300-400 | JSX-1/5.4 | Blue + Red + Green + Yellow + Black | Ethylene Propylene Diene Monomer |
| 500-630 | JSX-1/5.5 | Blue + Red + Green + Yellow + Black | Ethylene Propylene Diene Monomer |
Key Features
- Watertight Seal: It shrinks with heat to create a durable, watertight seal, protecting against moisture and corrosion.
- High Electrical Performance: Provides superior electrical insulation and reliable mechanical strength for connections up to 1kV.
- Mechanical Protection: The thick and robust layer protects joints from impacts, abrasion, and vibrations.
Typical Applications
- Industrial Installations: Ideal for terminating cables in control panels, motors, and distribution systems in industrial environments.
- Transportation Systems: Used for cable termination for signaling, lighting, and power equipment in tunnels and railways.
- Commercial and Residential Buildings: Applied in the connection and protection of cables in splice boxes and electrical panels.
