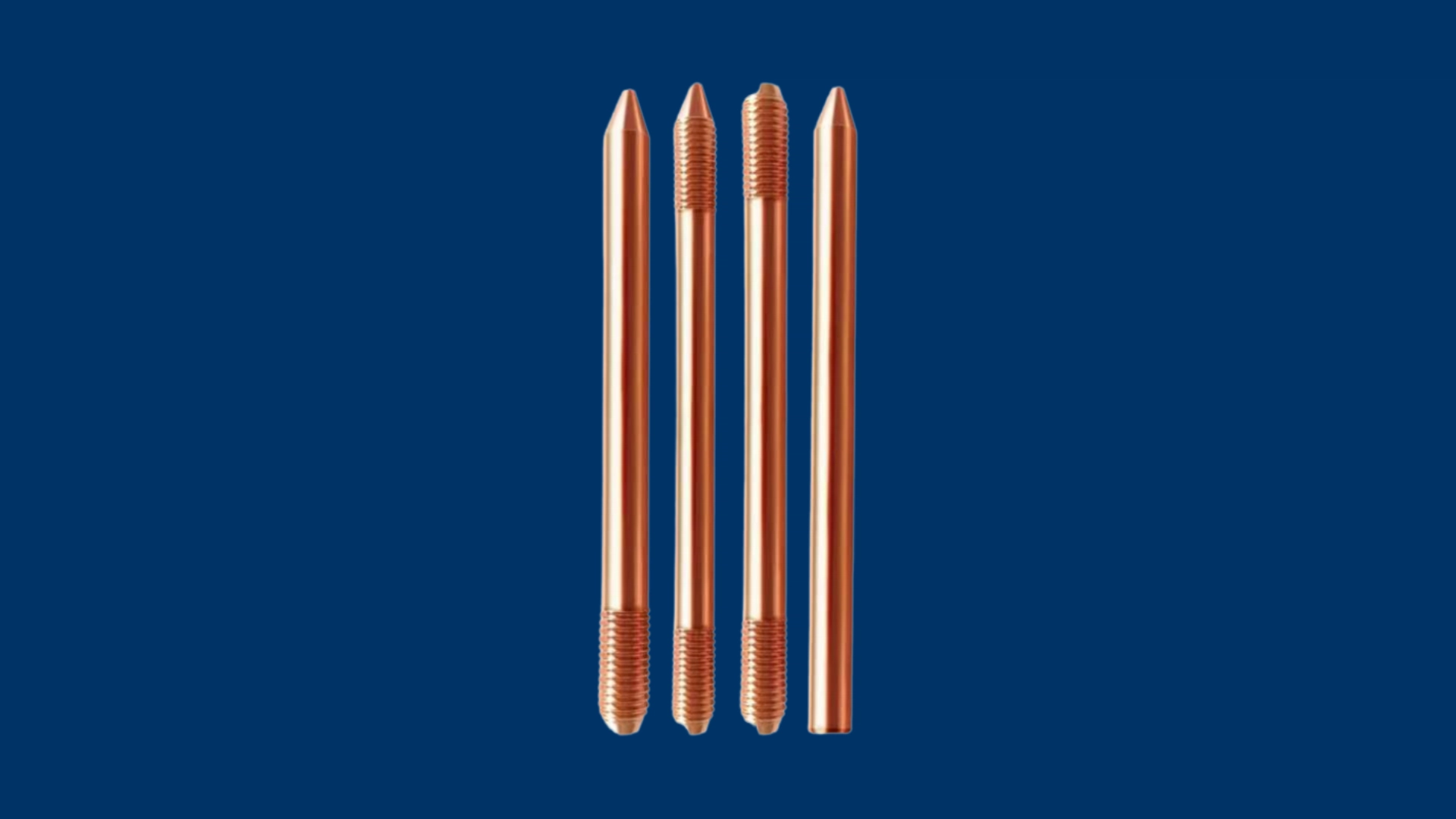

Standard Rod
Our standard copper-bonded earthing rods provide excellent conductivity and corrosion resistance for a reliable and long-lasting grounding system.
- High Conductivity: The copper-bonded steel core ensures superior electrical performance and efficient grounding.
- Corrosion Resistance: The thick copper layer provides exceptional protection against corrosion, extending the rod's service life.
- Versatile Application: Suitable for a wide range of grounding and earthing systems in residential, commercial, and industrial settings.
Product Details
Technical Specifications
| Model | Diameter (mm) | Length (mm) | Thread | Copper Layer Thickness | Weight per Meter (kg/m) |
|---|---|---|---|---|---|
| E-8 | 8 | 1200 / 1220 / 1500 / 1800 / 2400 / 2500 / 3000 | 0.025-1mm | 0.4 | |
| E-9.5 | 9.5 | 1200 / 1220 / 1500 / 1800 / 2400 / 2500 / 3000 | 3/8" | 0.025-1mm | 0.56 |
| E-10 | 10 | 1200 / 1220 / 1500 / 1800 / 2400 / 2500 / 3000 | 0.025-1mm | 0.62 | |
| E-12.7 | 12.7 | 1200 / 1220 / 1500 / 1800 / 2400 / 2500 / 3000 | 1/2" | 0.025-1mm | 1 |
| E-14 | 14 | 1200 / 1220 / 1500 / 1800 / 2400 / 2500 / 3000 | M16 | 0.025-1mm | 1.21 |
| E-14.2 | 14.2 | 1200 / 1220 / 1500 / 1800 / 2400 / 2500 / 3000 | 5/8" | 0.025-1mm | 1.24 |
| E-15.8 | 15.8 | 1200 / 1220 / 1500 / 1800 / 2400 / 2500 / 3000 | 0.025-1mm | 1.54 | |
| E-16 | 16 | 1200 / 1220 / 1500 / 1800 / 2400 / 2500 / 3000 | M18 | 0.025-1mm | 1.58 |
| E-17.2 | 17.2 | 1200 / 1220 / 1500 / 1800 / 2400 / 2500 / 3000 | 3/4" | 0.025-1mm | 1.83 |
| E-18 | 18 | 1200 / 1220 / 1500 / 1800 / 2400 / 2500 / 3000 | M20 | 0.025-1mm | 2 |
| E-19.1 | 19.1 | 1200 / 1220 / 1500 / 1800 / 2400 / 2500 / 3000 | 0.025-1mm | 2.25 | |
| E-20 | 20 | 1200 / 1220 / 1500 / 1800 / 2400 / 2500 / 3000 | M22 | 0.025-1mm | 2.47 |
| E-22 | 22 | 1200 / 1220 / 1500 / 1800 / 2400 / 2500 / 3000 | M24 | 0.025-1mm | 3 |
| E-23.2 | 23.2 | 1200 / 1220 / 1500 / 1800 / 2400 / 2500 / 3000 | 1" | 0.025-1mm | 3.32 |
| E-25 | 25 | 1200 / 1220 / 1500 / 1800 / 2400 / 2500 / 3000 | M27 | 0.025-1mm | 3.86 |
| E-30 | 30 | 1200 / 1220 / 1500 / 1800 / 2400 / 2500 / 3000 | 0.025-1mm | 5.56 | |
| E-32 | 32 | 1200 / 1220 / 1500 / 1800 / 2400 / 2500 / 3000 | 0.025-1mm | 6.32 |
Key Features
- High Conductivity: The copper-bonded steel core ensures superior electrical performance and efficient grounding.
- Corrosion Resistance: The thick copper layer provides exceptional protection against corrosion, extending the rod's service life.
- Versatile Application: Suitable for a wide range of grounding and earthing systems in residential, commercial, and industrial settings.
Typical Applications
- Residential and Commercial Buildings: Used for creating reliable grounding systems to protect against electrical faults and lightning strikes.
- Power Substations: Essential for safety and grounding in high-voltage power distribution and transmission facilities.
- Industrial Plants: Applied in industrial environments to protect sensitive equipment and personnel from electrical hazards.
