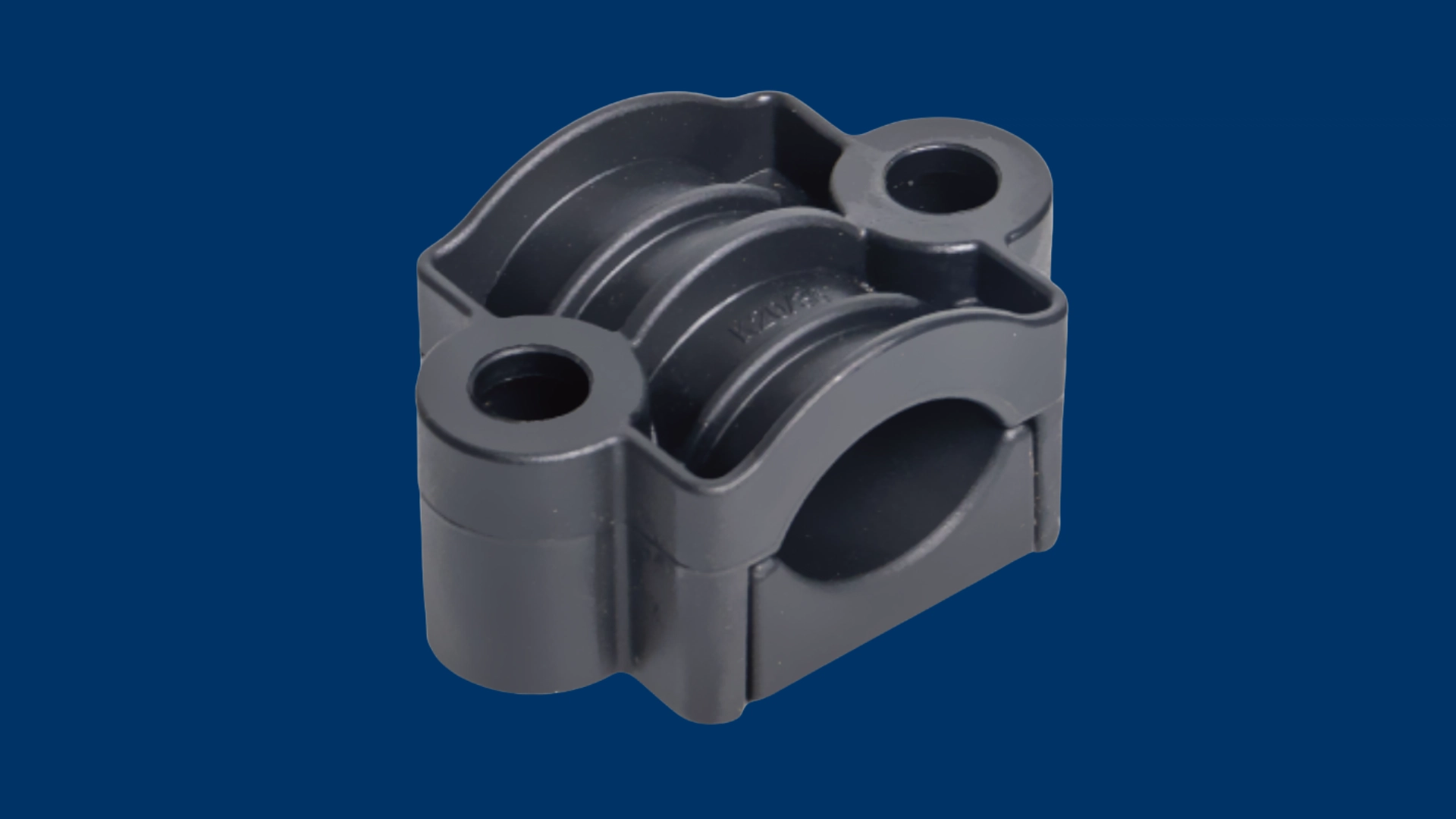

Single-core Nylon Fixing Clip
The nylon cable fixing clamp, also known as a cable clamp, is a specialized clamp used to secure cables after laying and installation, ensuring they are in the correct position and preventing movement due to external forces or self-weight.
- High Mechanical Strength: It can withstand large dynamic loads during short circuits, with a mechanical strength of 20000-30000 Nm, ensuring good stability.
- Optimized Design: Features a smooth, curved design that is aesthetically pleasing and strong, with high toughness and resistance to high temperatures.
- Excellent Insulation: The body is made from high-quality fiberglass material, offering good insulation and flame-retardant properties.
- Easy to Install: The clamps are easy to install, making them a new, beautiful, and practical choice for cable fixation.

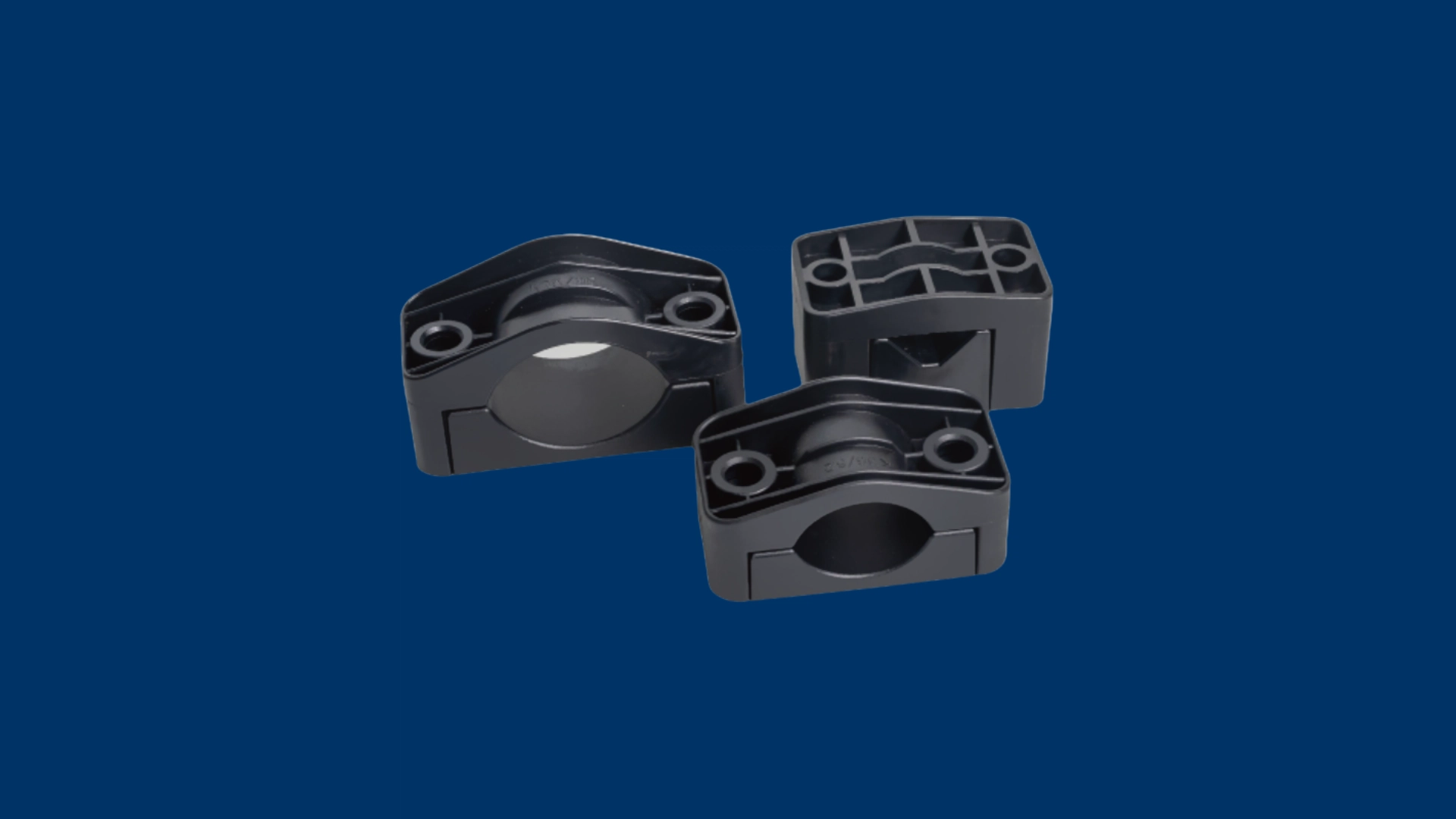

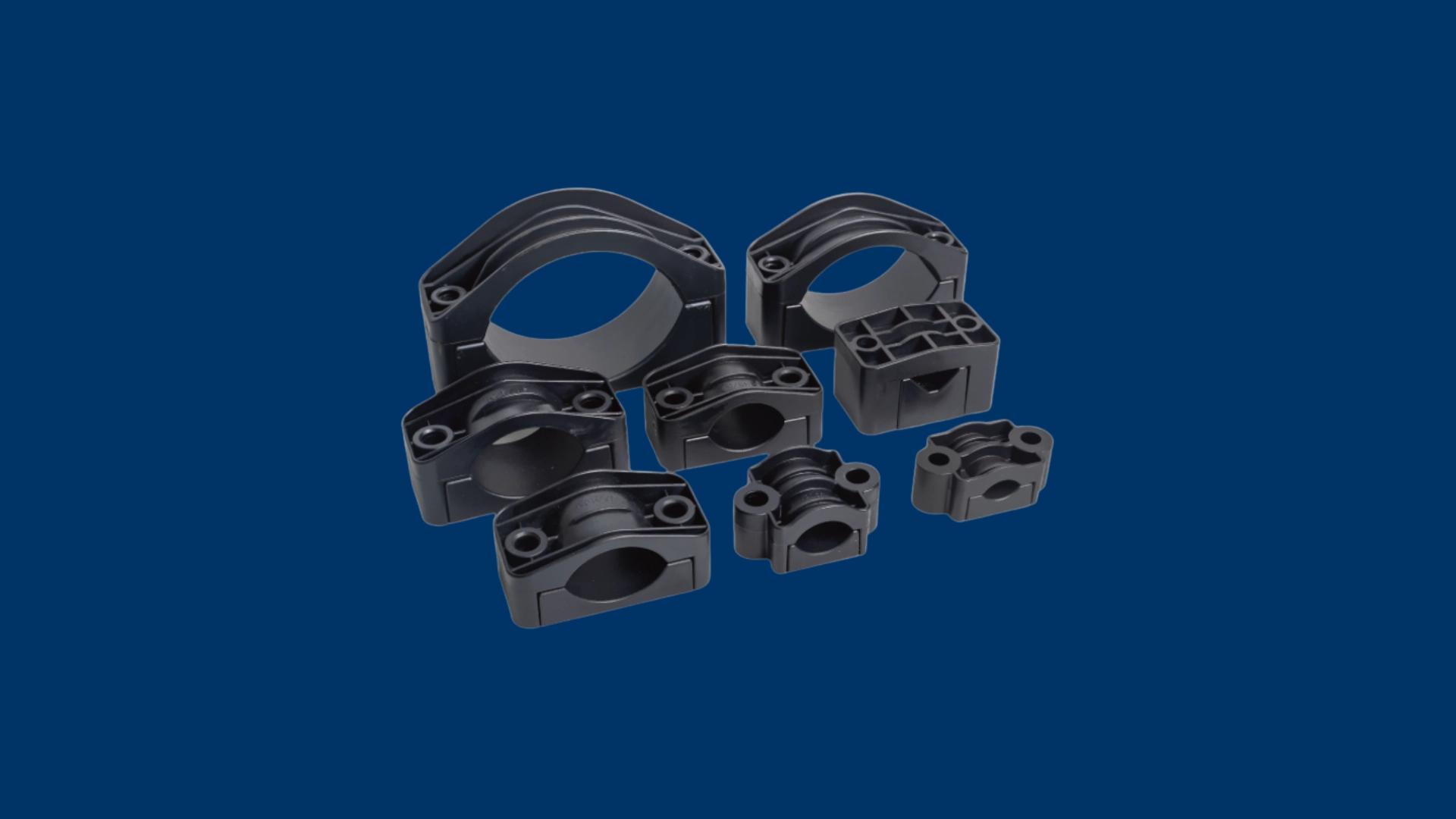

Product Details
Technical Specifications
| Specifications | Applicable cable diameter | Pitch-row | Length x Width x Height | Screw size | Packing Quantity | Color | Material |
|---|---|---|---|---|---|---|---|
| K160/230 | 97-150mm | 160mm | 195*65*120mm | M10 or M12 | 60 | Black | PA6 |
| K90/150 | 68-100mm | 120mm | 150*59*87mm | M10 or M12 | 120 | ||
| K75/95 | 50-70mm | 96mm | 128*59*66mm | M12 | 120 | ||
| K55/75 | 38-57mm | 84mm | 115*59*52mm | M12 | 150 | ||
| K36/52 | 35-48mm | 75mm | 108*59*50mm | M12 | 200 | ||
| K20/36 | 24-36mm | 60mm | 89*59*50mm | M12 | 200 | ||
| K13/25 | 13-25mm | 60mm | 87*45*35mm | M12 | 200 | ||
| K15/40 | 14-40mm | 69mm | 94*59*57mm | M12 | 200 |
Key Features
- High Mechanical Strength: Built to withstand significant tensile loads in demanding environments.
- Optimized Design: Features a smooth, curved design that is aesthetically pleasing and strong.
- Excellent Insulation: The body is made from high-quality fiberglass material, offering good insulation and flame-retardant properties.
- Corrosion Resistance: Made with corrosion-resistant and UV-stabilized materials, ideal for harsh outdoor environments.
- Flame Retardant: Provides enhanced safety with its nylon flame-retardant properties.
Typical Applications
- Building Cables: Used for branch cables in buildings.
- Tunnels and Mines: Ideal for securing cables in tunnels and mines.
- Wind Energy: Suitable for installations in wind energy projects.
- High-Voltage Distribution: Used for high-voltage distribution cable installations.
