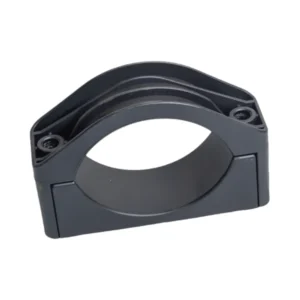

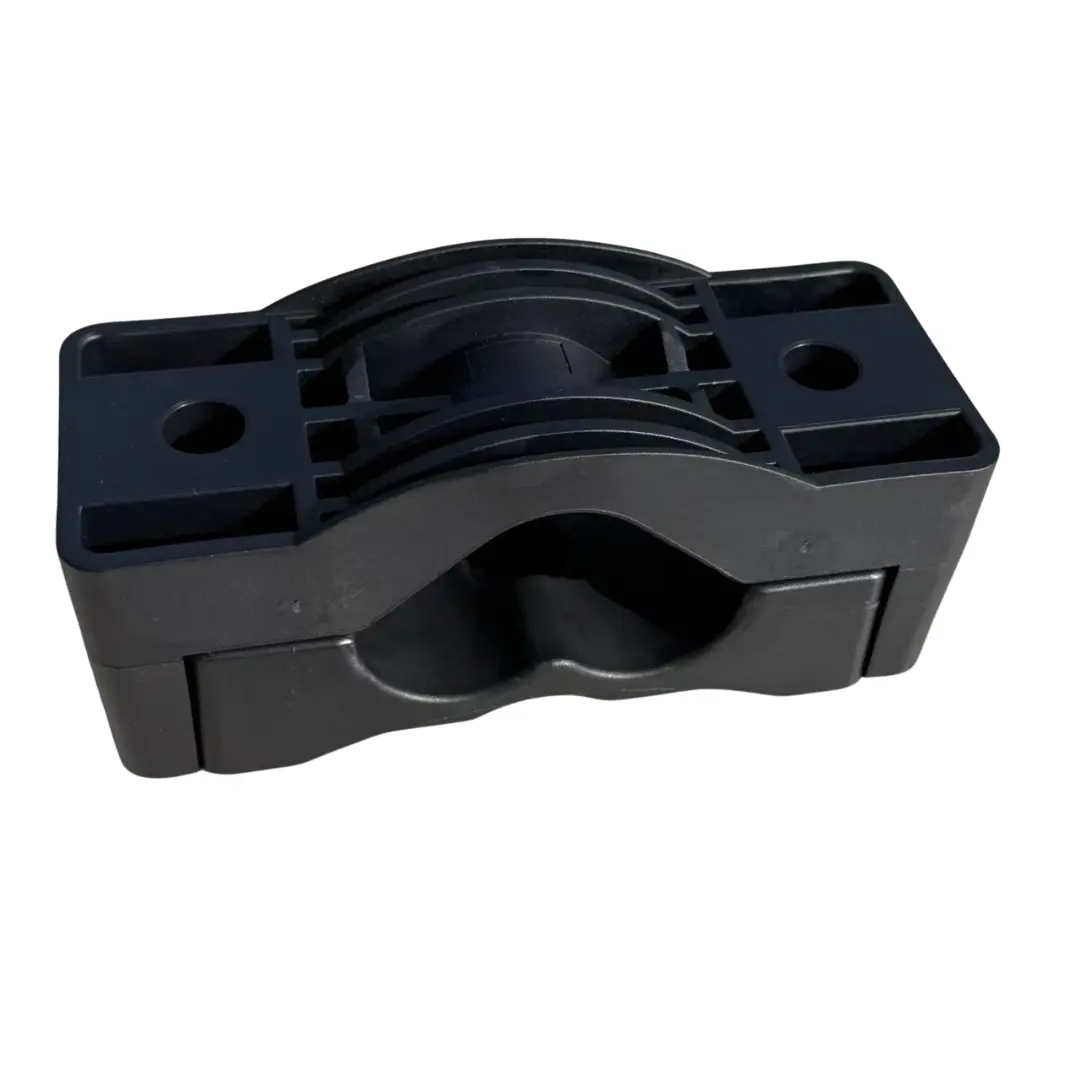

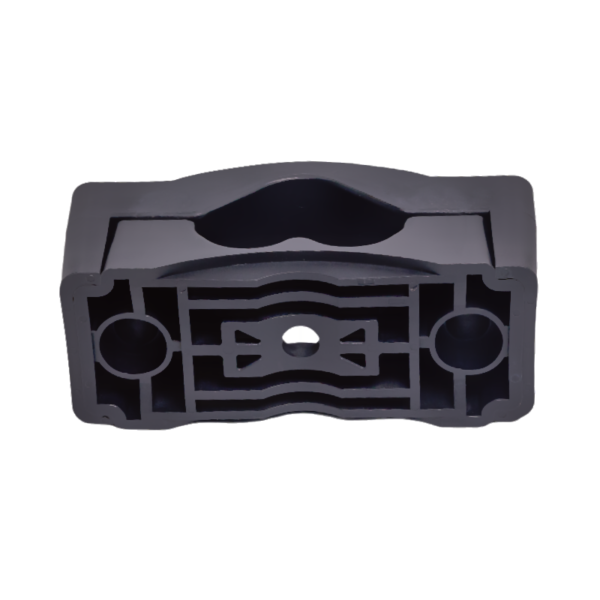

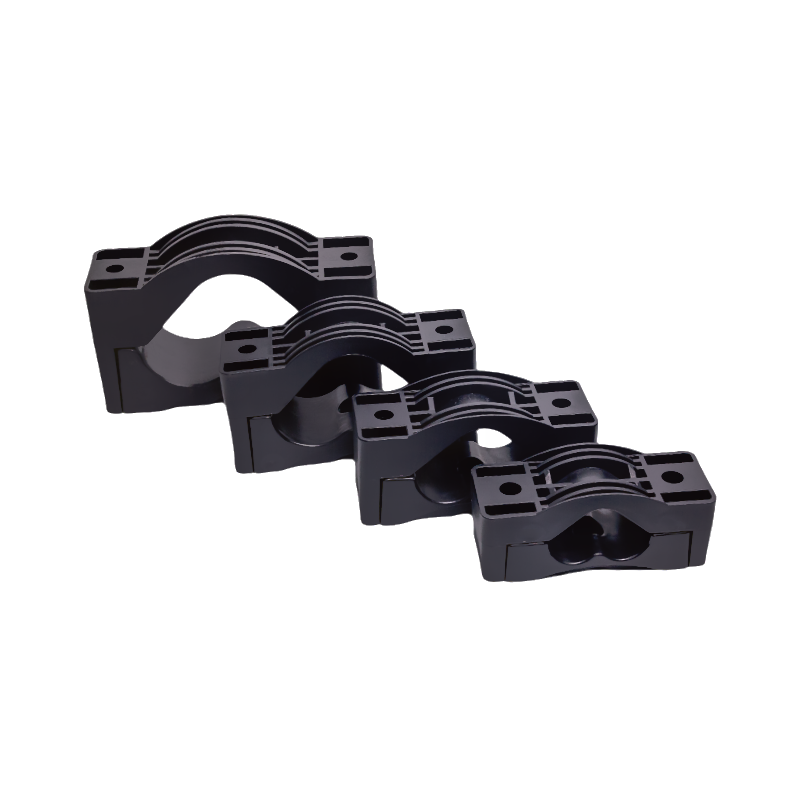

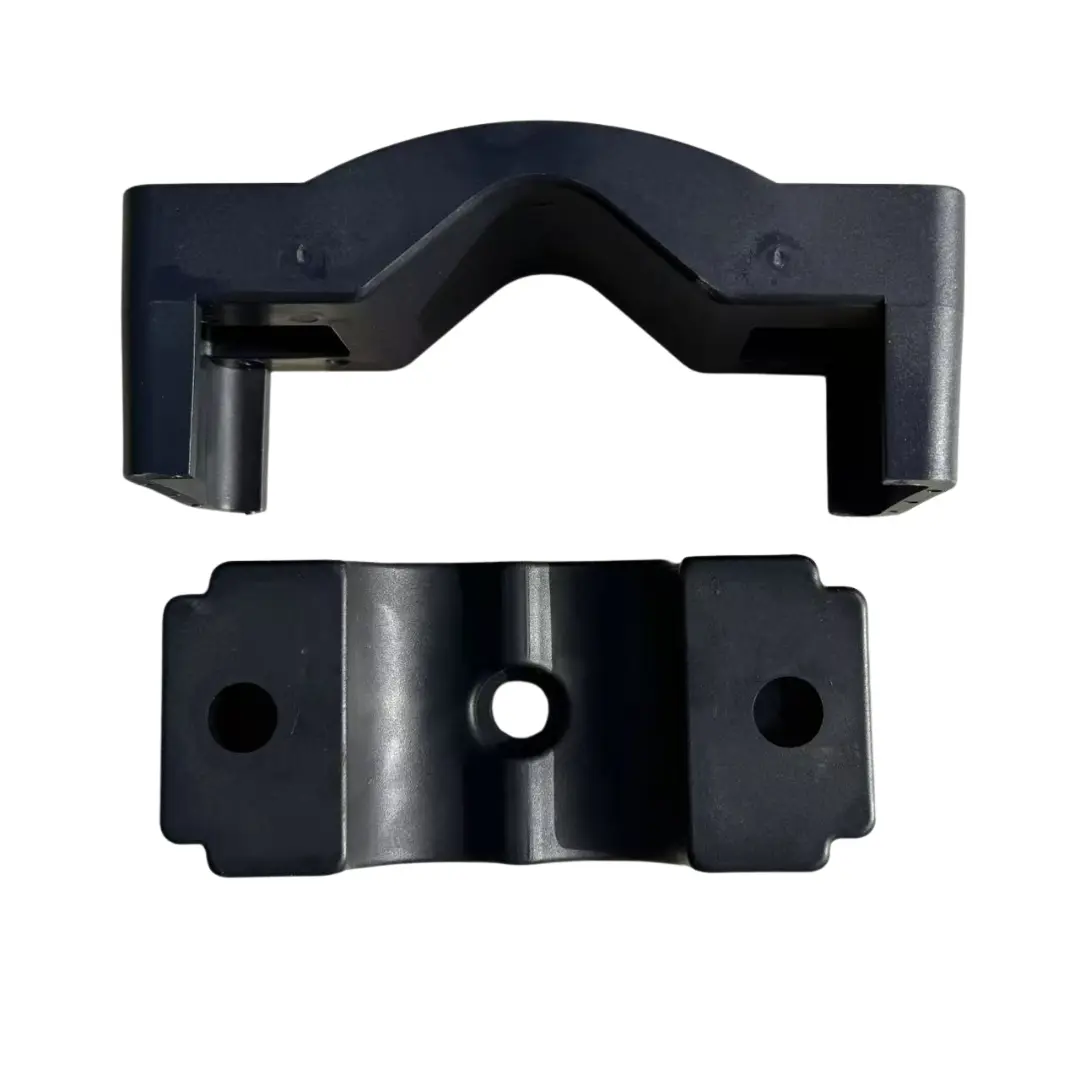

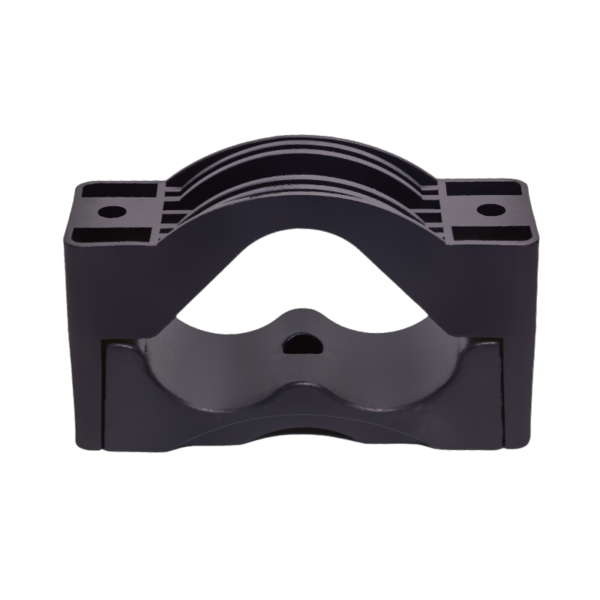

Three-core nylon fixing clip
High-strength Three-core nylon fixing clip with smooth curved design, flame-retardant PA66 material, insulating fiberglass shell, and M12 screw mounting—ideal for neat, secure fixing of 3-core cables in industrial and power distribution systems.
Cable Outer Diameter
| Model | Cable Outer Diameter |
|---|---|
| 3-Core 27/38 | 3×27–38mm |
| 3-Core 38/51 | 3×38–51mm |
| 3-Core 51/69 | 3×51–69mm |
| 3-Core 69/90 | 3×69–90mm |
Hole Spacing
| Model | Hole Spacing |
|---|---|
| 3-Core 27/38 | 125mm |
| 3-Core 38/51 | 145mm |
| 3-Core 51/69 | 170mm |
| 3-Core 69/90 | 215mm |
Screw Size
| Model | Screw Size |
|---|---|
| 3-Core 27/38 | M12 |
| 3-Core 38/51 | M12 |
| 3-Core 51/69 | M12 |
| 3-Core 69/90 | M12 |
Request for Quote or Order
For quotes, orders, or any inquiries, feel free to reach out. We’ll be happy to assist you.
