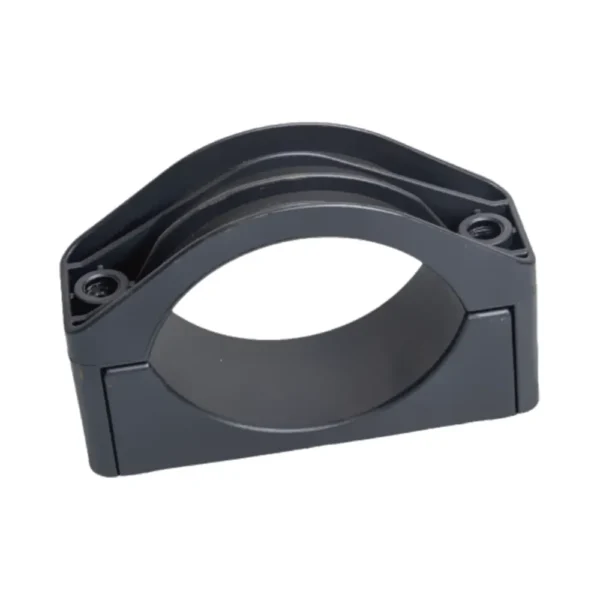

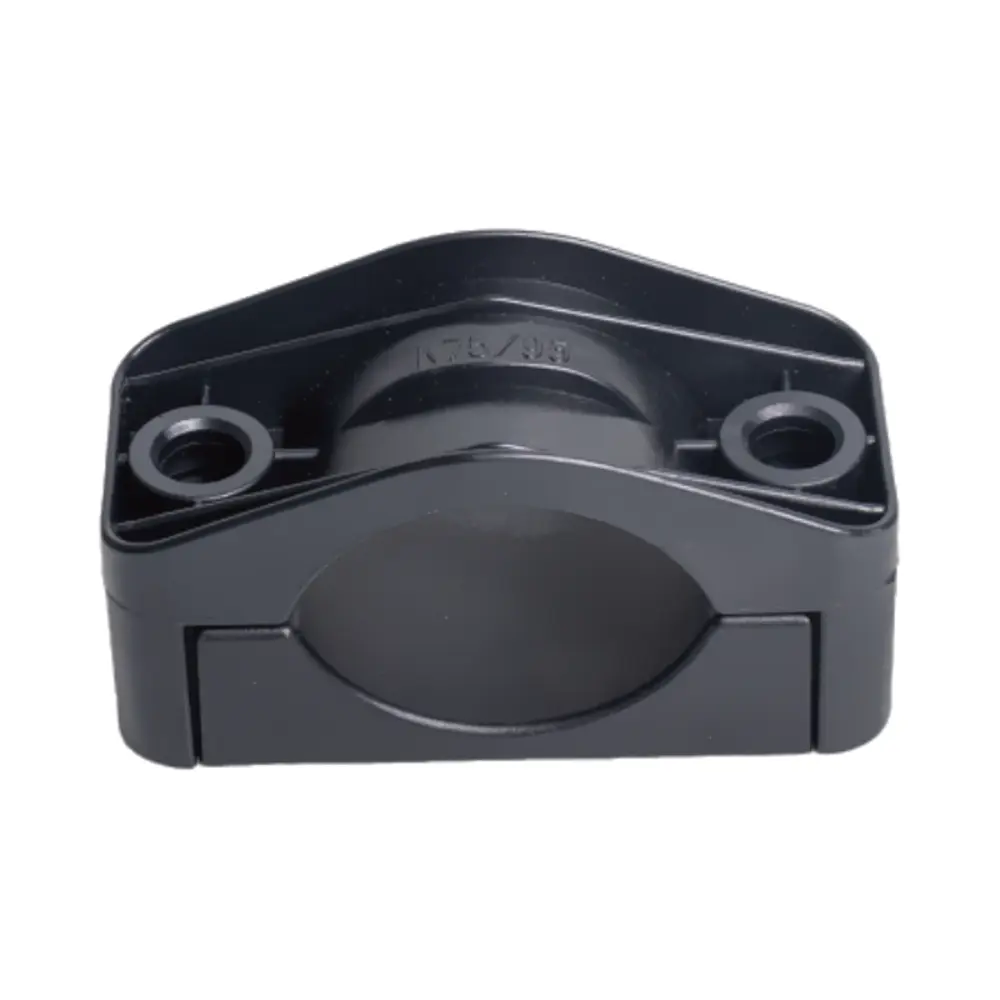

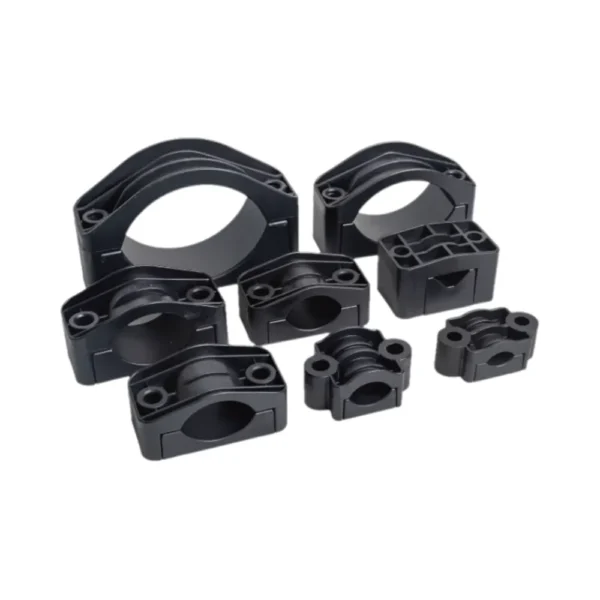

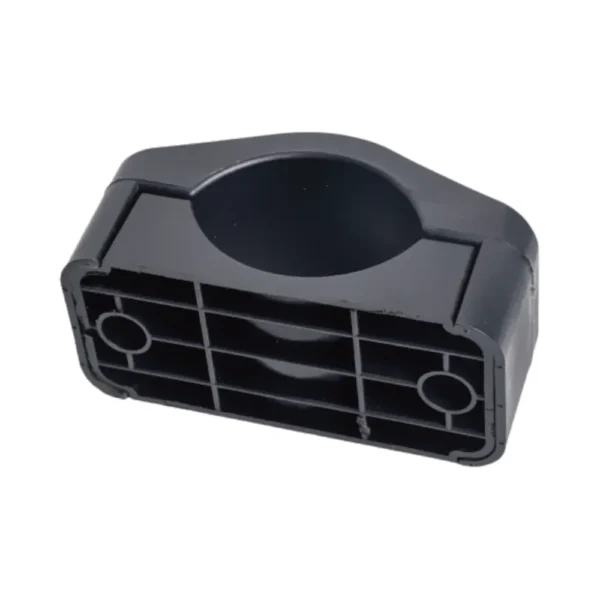

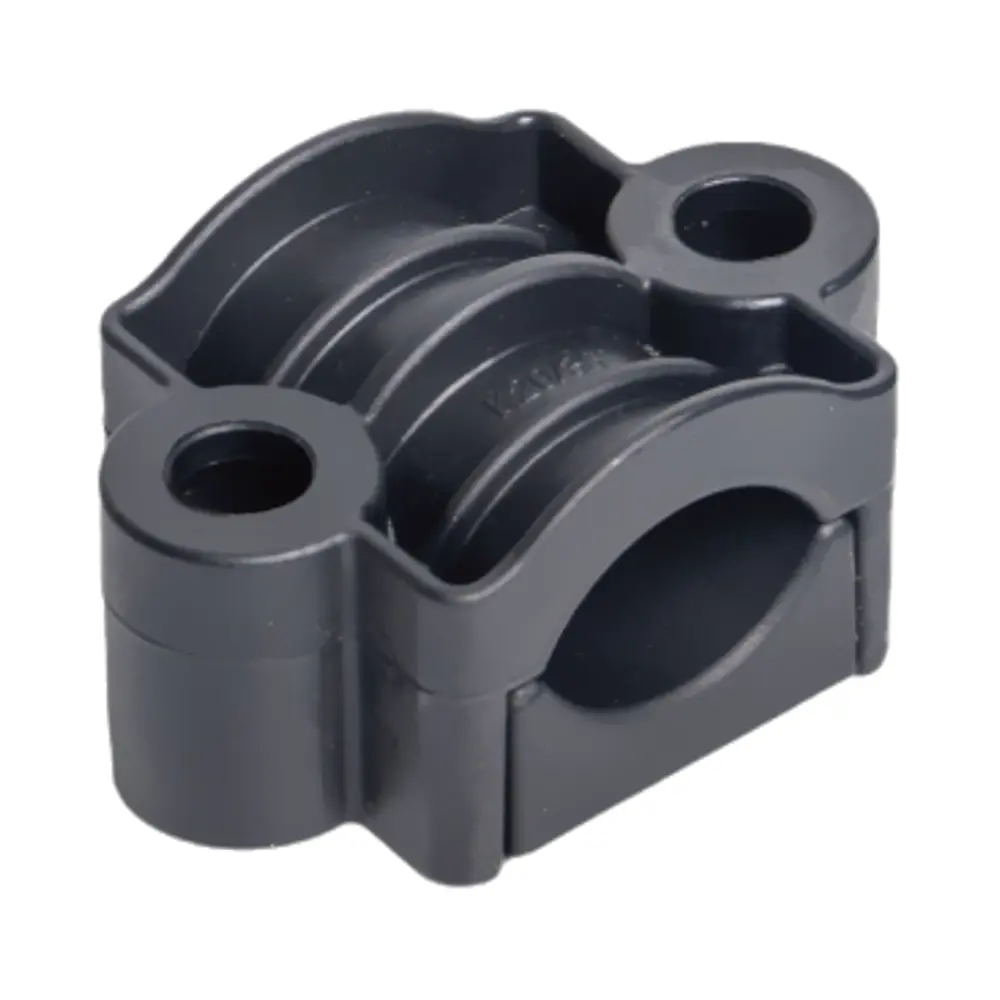

Single Core Nylon Cable Clamp
High-strength single core nylon cable clamp with smooth curved design, flame-retardant PA66 material, and fiberglass-reinforced insulation. Engineered for secure, reliable fixing of power and industrial cables. Bolts not included.
Cable Outer Diameter
| Model | Cable Outer Diameter |
|---|---|
| Extra Large K160/230 | 97–150mm |
| Very Large K90/150 | 68–100mm |
| Large K75/95 | 50–70mm |
| Medium K55/75 | 38–57mm |
| Small K36/52 | 35–48mm |
| Extra Small K20/36 | 24–36mm |
| Mini K13/25 | 13–25mm |
| Square Hole K15/40 | 14–40mm |
Hole Spacing
| Model | Hole Spacing |
|---|---|
| Extra Large K160/230 | 160mm |
| Very Large K90/150 | 120mm |
| Large K75/95 | 96mm |
| Medium K55/75 | 84mm |
| Small K36/52 | 75mm |
| Extra Small K20/36 | 60mm |
| Mini K13/25 | 60mm |
| Square Hole K15/40 | 69mm |
Screw Size
| Model | Screw Size |
|---|---|
| Extra Large K160/230 | M10 or M12 |
| Very Large K90/150 | M10 or M12 |
| Large K75/95 | M12 |
| Medium K55/75 | M12 |
| Small K36/52 | M12 |
| Extra Small K20/36 | M12 |
| Mini K13/25 | M12 |
| Square Hole K15/40 | M12 |
Request for Quote or Order
For quotes, orders, or any inquiries, feel free to reach out. We’ll be happy to assist you.
