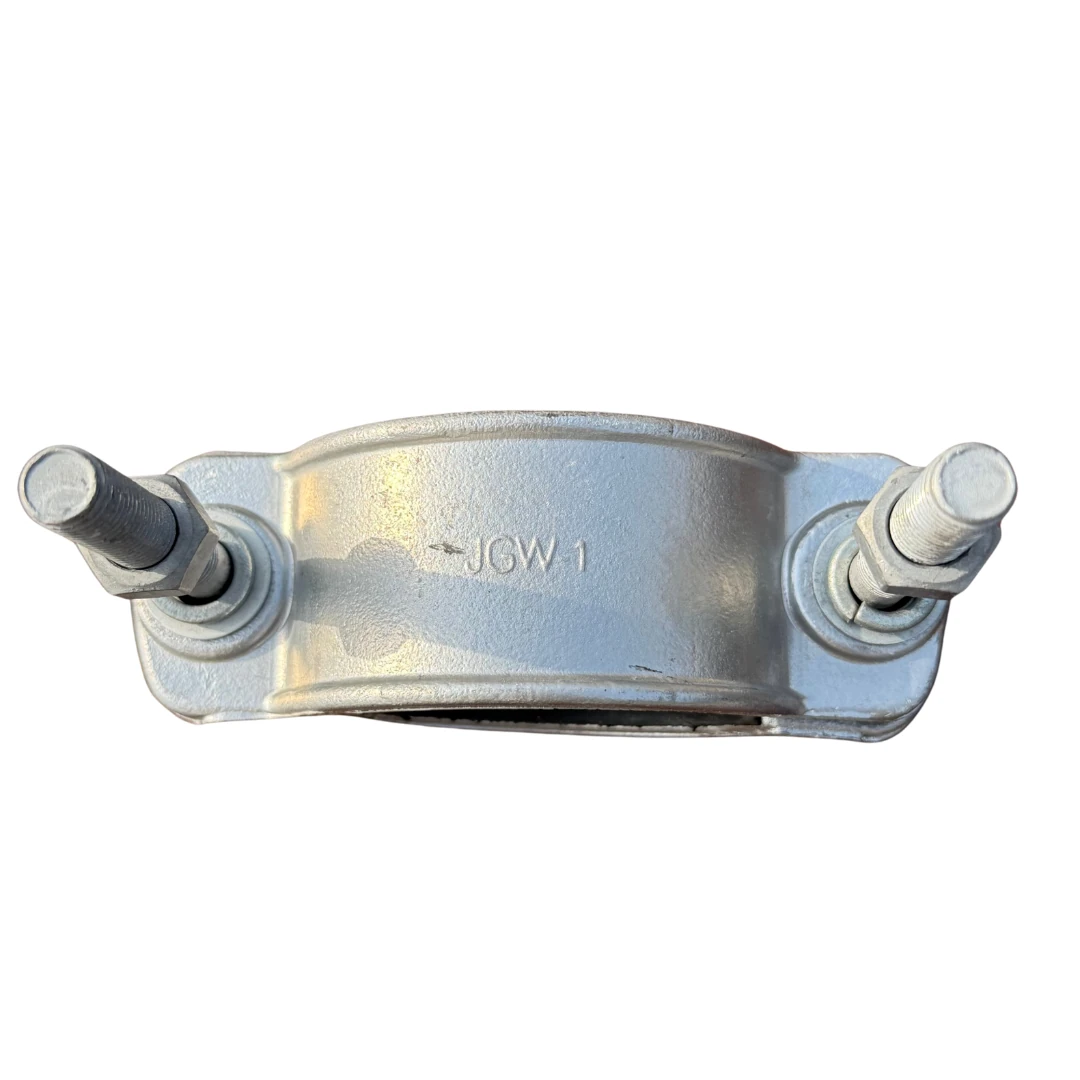

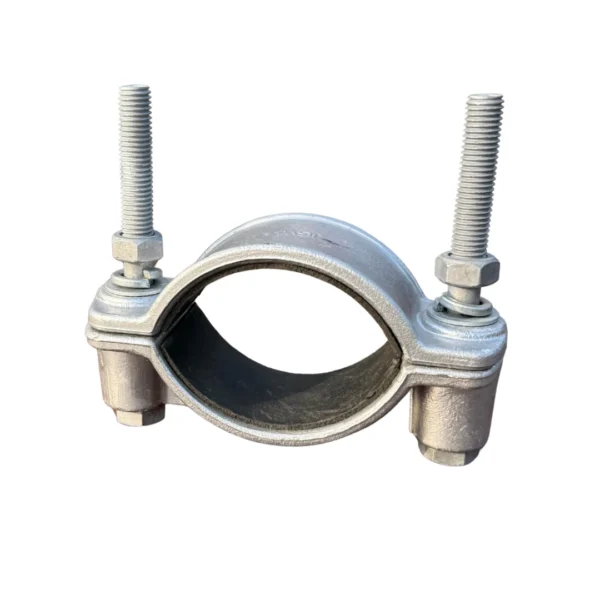

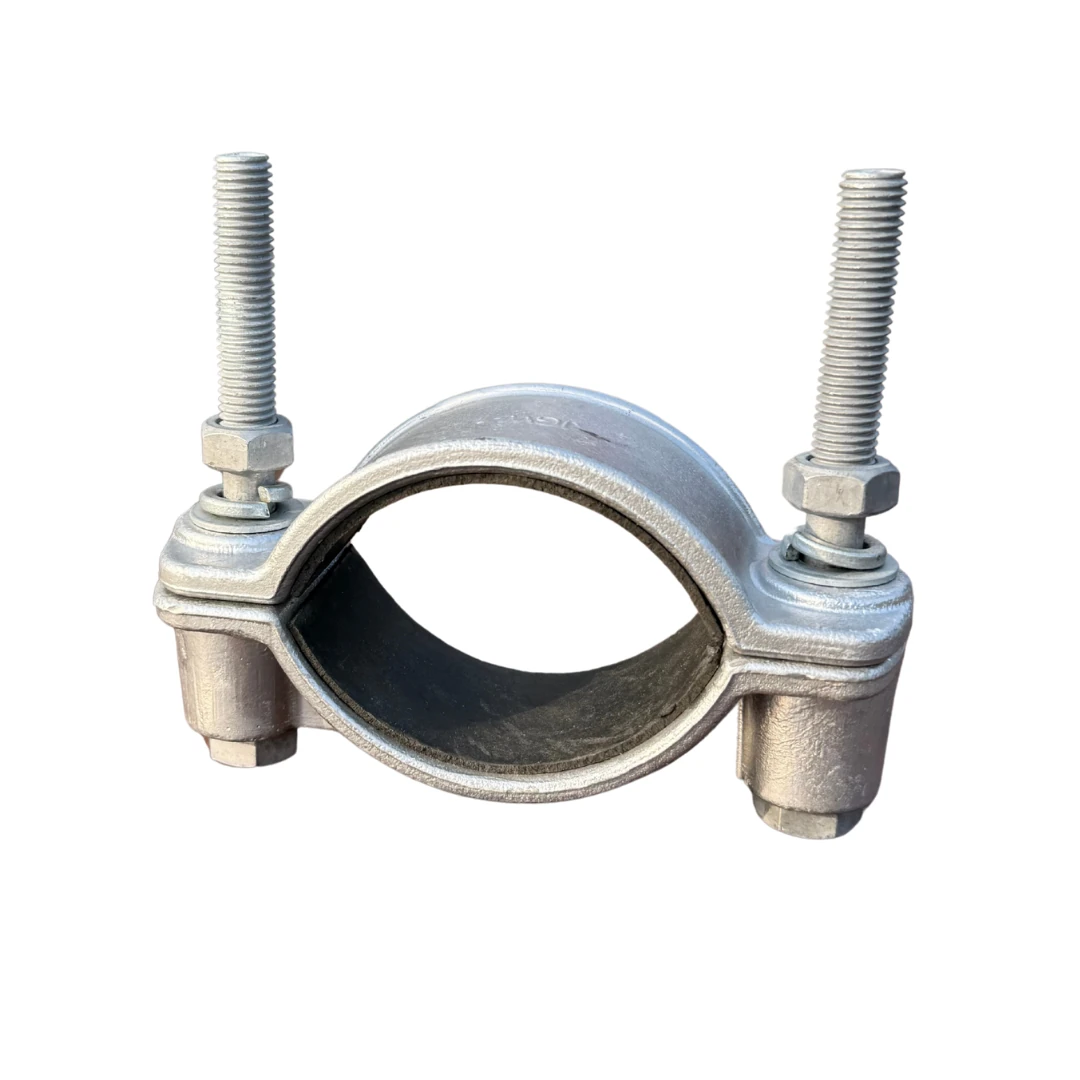

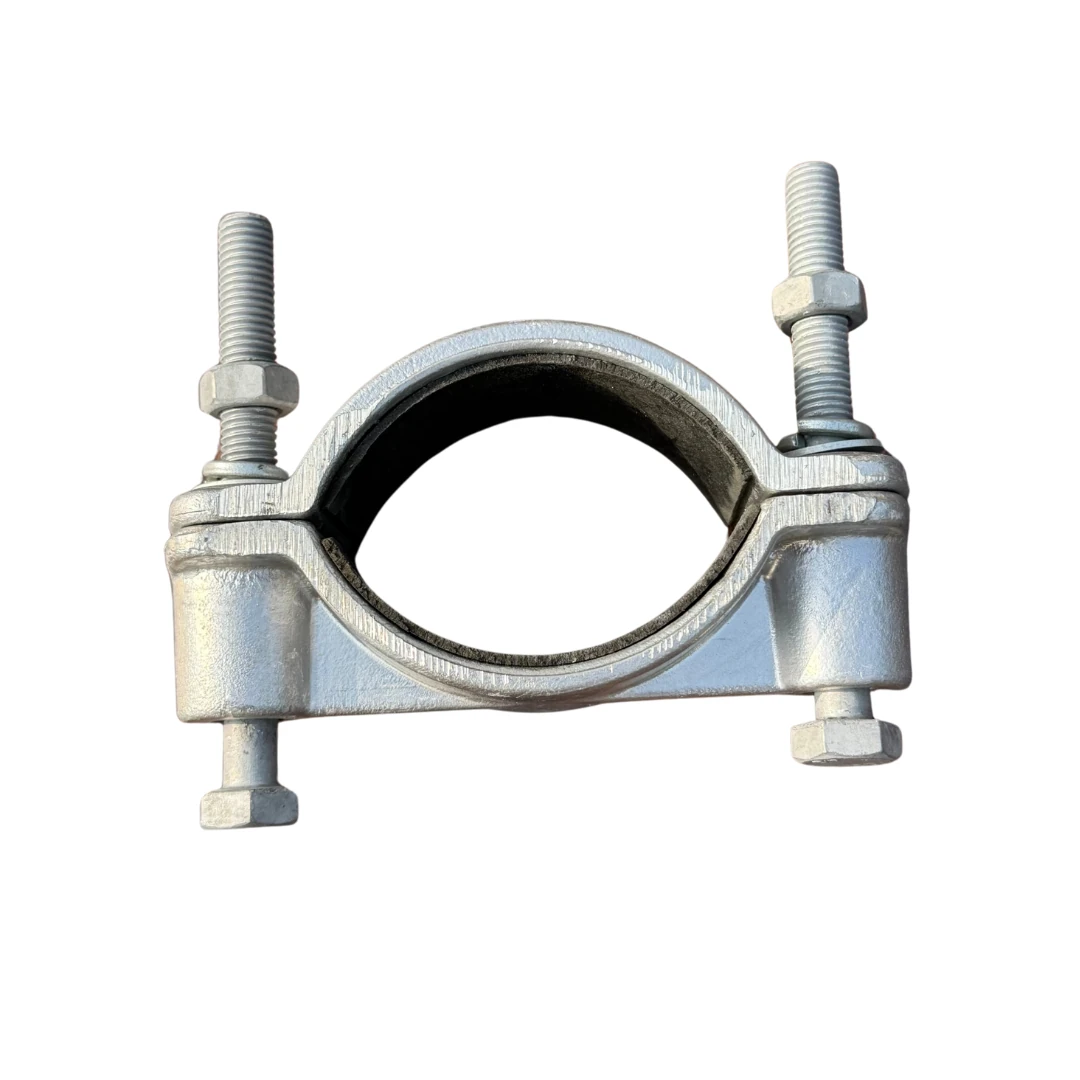

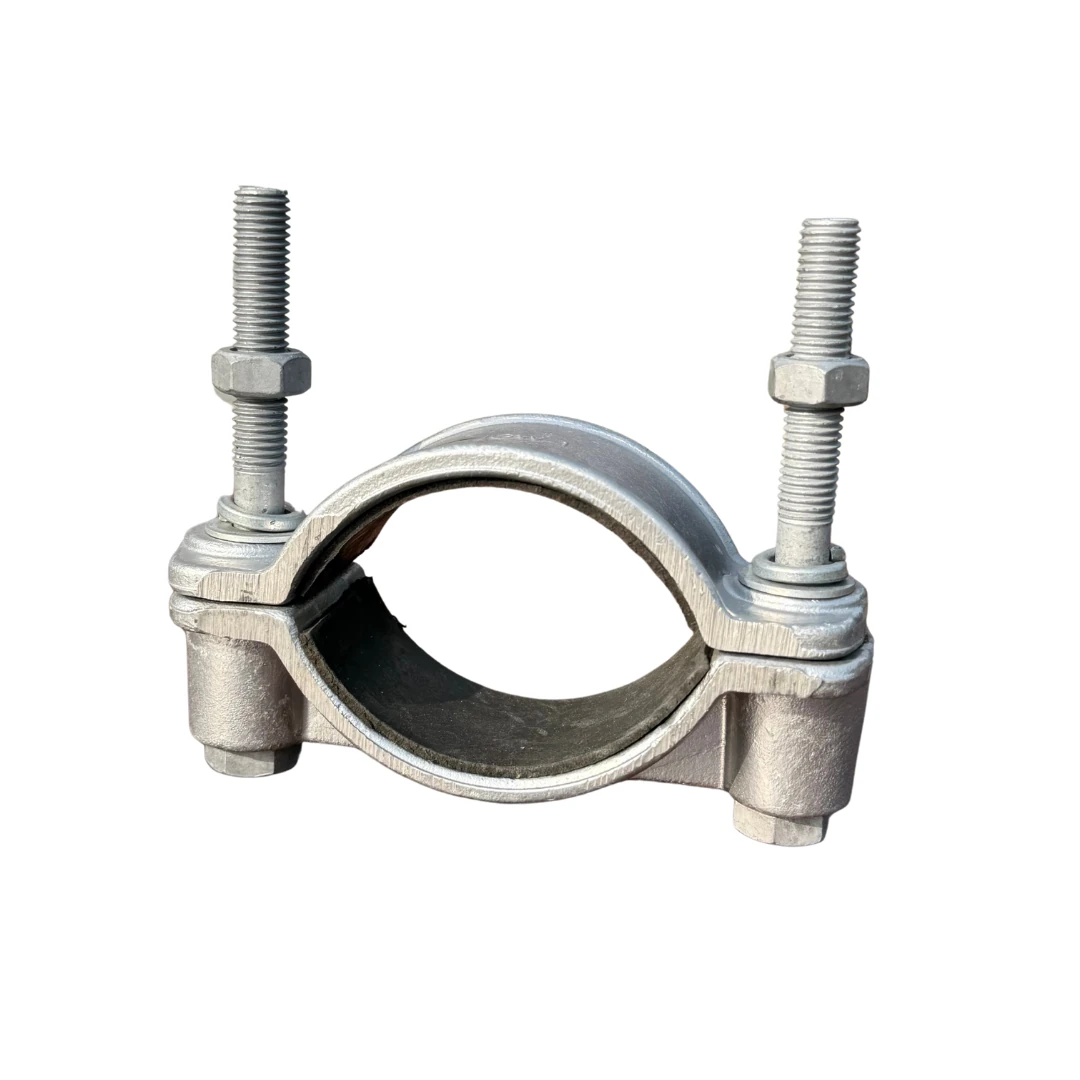

JGW High Voltage Cable Fixing Clamp
Discover the JGW High Voltage Cable Fixing Clamp, designed for secure and reliable cable management in high voltage environments. Ideal for industrial and electrical applications, offering exceptional durability and safety.
| Model | Cable Outer Diameter |
|---|---|
| JGW-02 | 29-40mm |
| JGW-01 | 40-60mm |
| JGW-0 | 60-75mm |
| JGW-1 | 75-84mm |
| JGW-2 | 85-95mm |
| JGW-3 | 95-105mm |
| JGW-4 | 105-115mm |
| JGW-5 | 115-125mm |
| JGW-6 | 125-135mm |
| JGW-7 | 135-145mm |
| JGW-8 | 140-165mm |
| Model | Hole Spacing | L1 | L2 | L3 |
|---|---|---|---|---|
| JGW-02 | 1 | 65 | 90 | 45 |
| JGW-01 | 2 | 86 | 110 | 50 |
| JGW-0 | 3 | 110 | 140 | 70 |
| JGW-1 | 4 | 120 | 150 | 50 |
| JGW-2 | 5 | 130 | 160 | 50 |
| JGW-3 | 6 | 140 | 175 | 55 |
| JGW-4 | 7 | 150 | 185 | 60 |
| JGW-5 | 8 | 160 | 195 | 65 |
| JGW-6 | 9 | 175 | 215 | 70 |
| JGW-7 | 10 | 190 | 230 | 80 |
| JGW-8 | 11 | 200 | 265 | 80 |
| Model | Screw Size |
|---|---|
| JGW-02 | 2-M12 |
| JGW-01 | 2-M12 |
| JGW-0 | 2-M12 |
| JGW-1 | 2-M12 |
| JGW-2 | 2-M12 |
| JGW-3 | 2-M12 |
| JGW-4 | 2-M12 |
| JGW-5 | 2-M12 |
| JGW-6 | 2-M12 |
| JGW-7 | 2-M12 |
| JGW-8 | 2-M12 |
