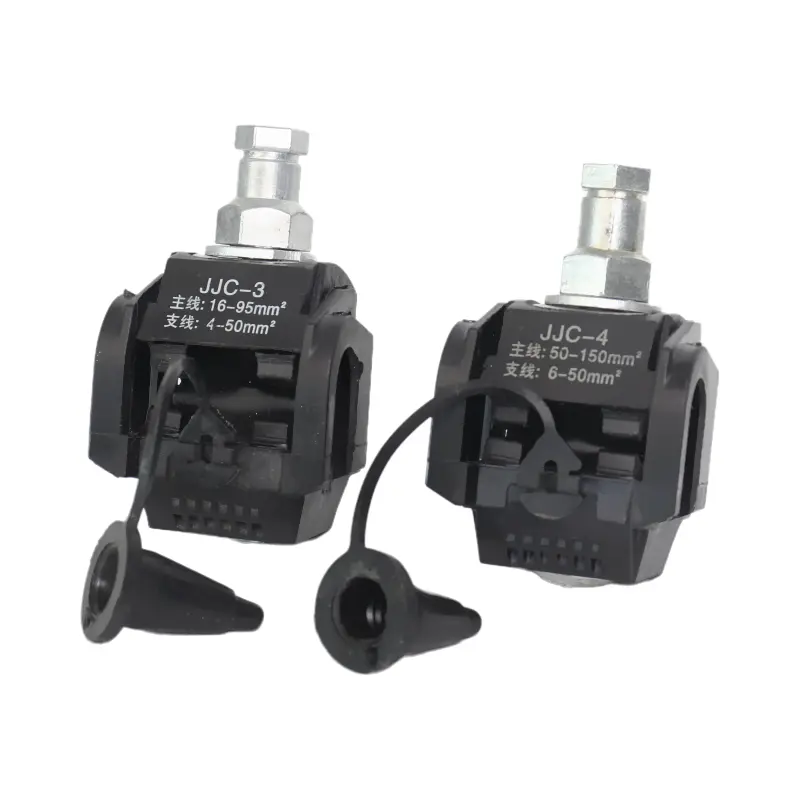

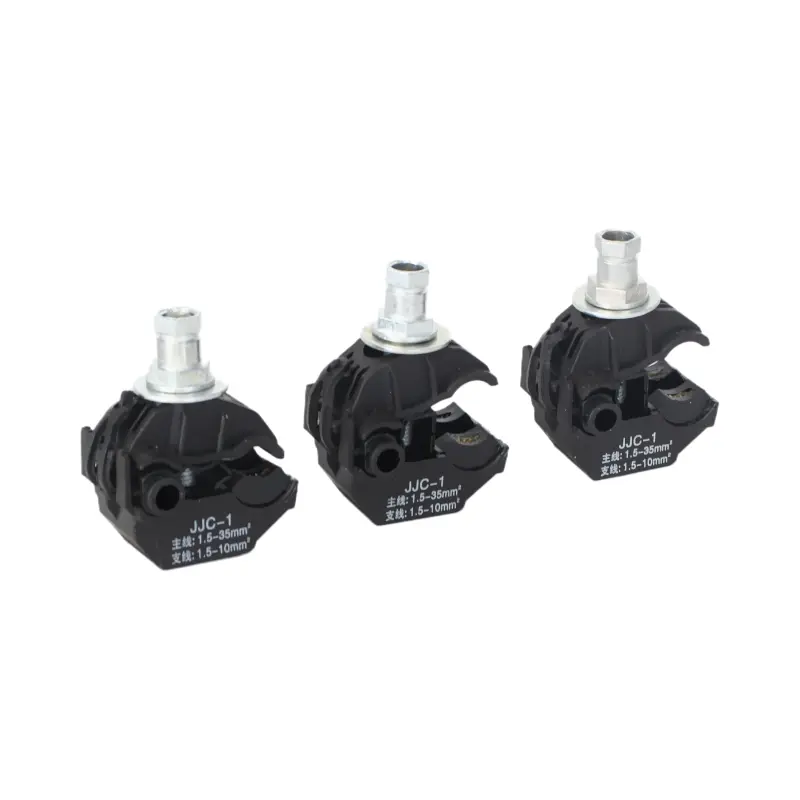

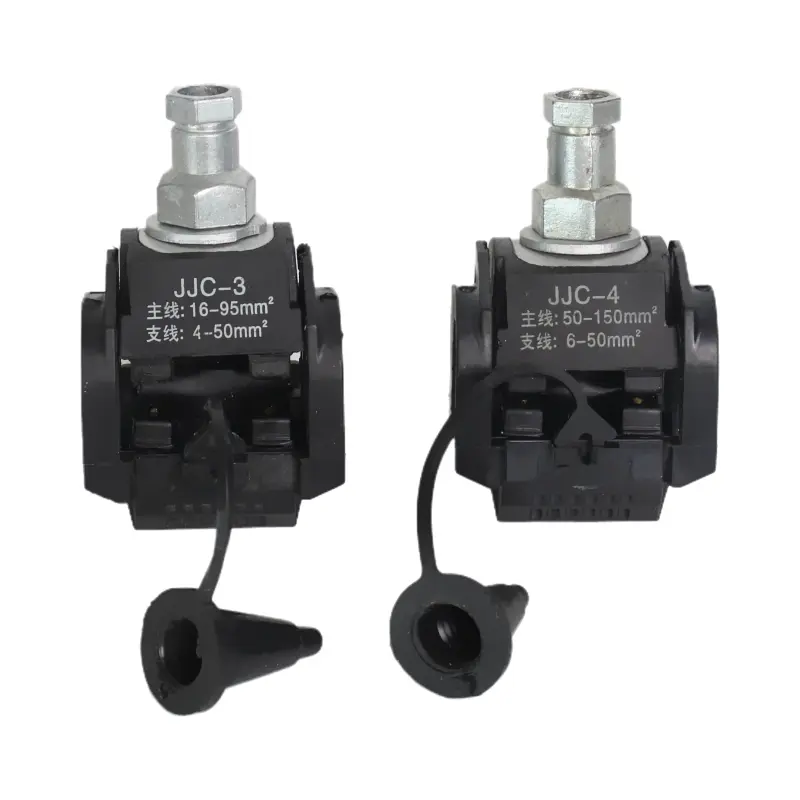

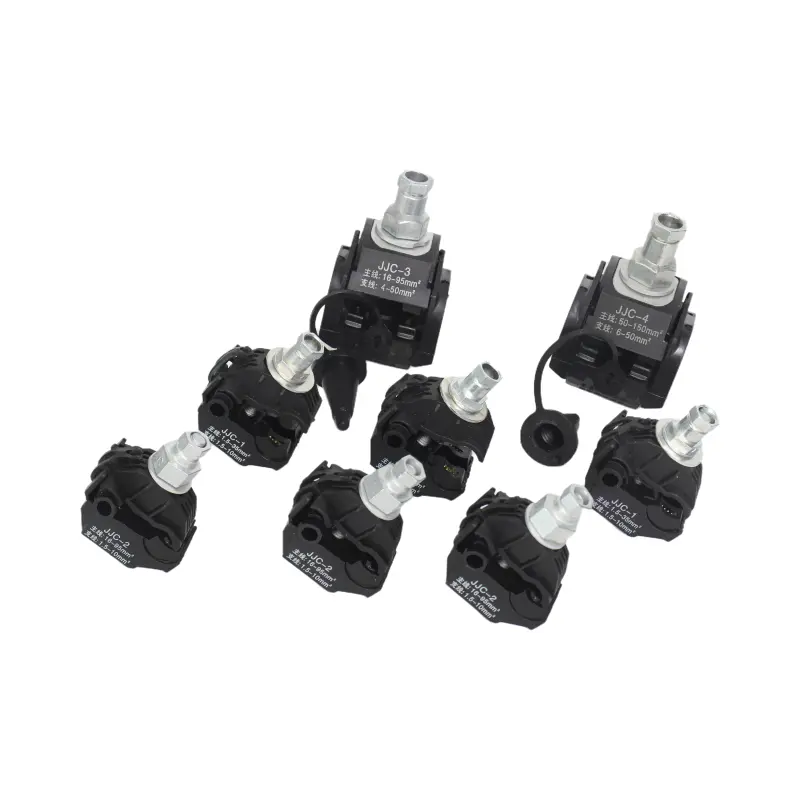

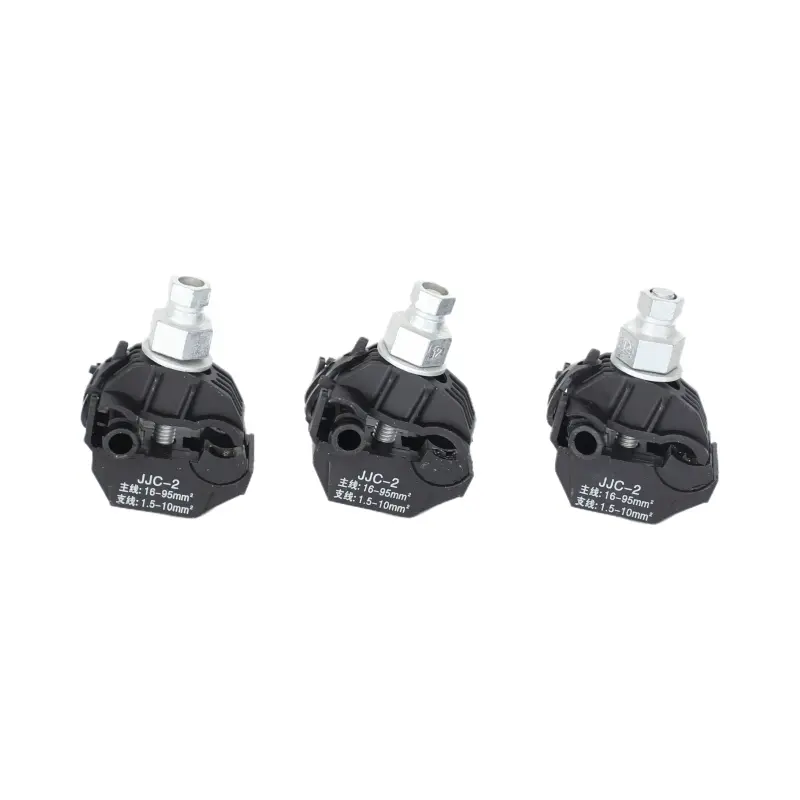

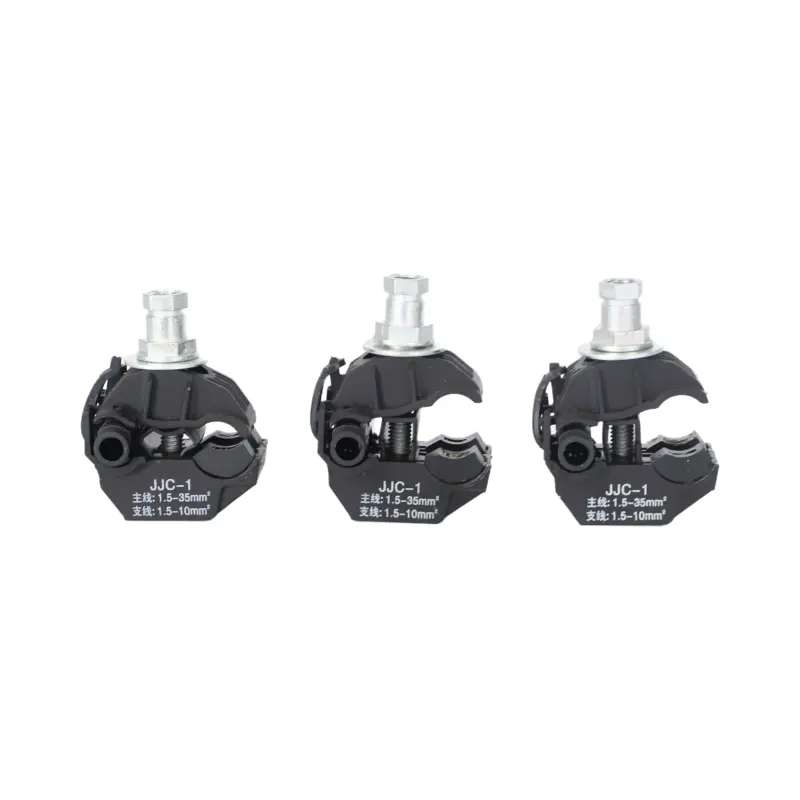

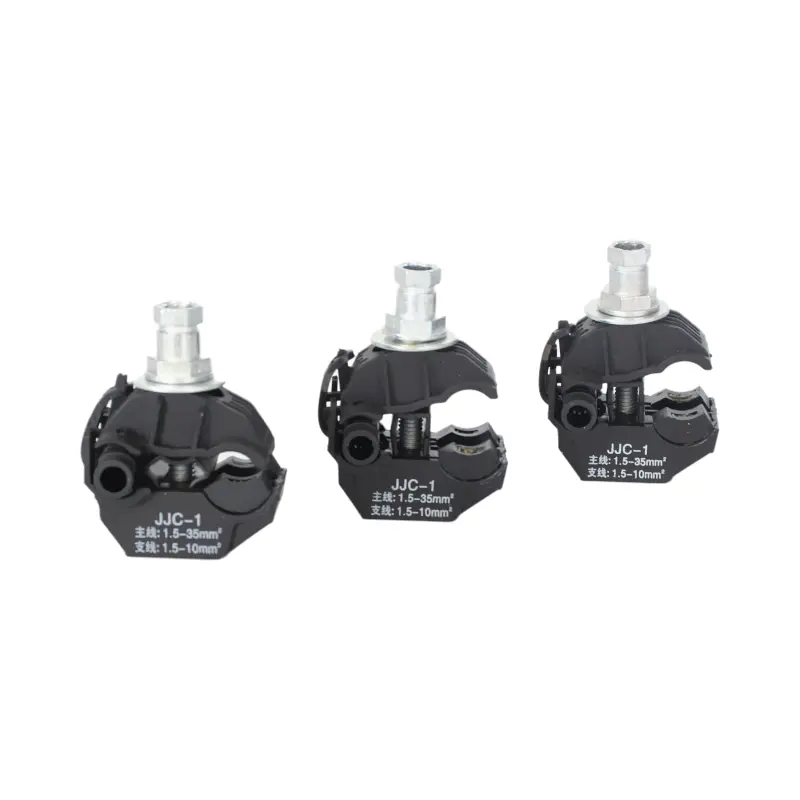

Insulation Piercing Connector
Insulation Piercing Connectors (IPCs) for 1-10kV offer simple, strip-free installation with low contact resistance and high insulation. Designed for versatile use with copper/aluminum cables, they ensure durable, reliable electrical connections meeting stringent performance standards.
| Model | Main Line Cross-section (mm²) |
|---|---|
| JJC-888 | 0.75-6 |
| JJC-1 | 1.5-35 (50) |
| JJC-2 | 16-95 (120) |
| JJC-3 | (10) 16-95 |
| JJC-3-1 | (4) 6-50 |
| JJC-4 | 50-150 (50-185) |
| JJC-5 | (16) 25-95 |
| JJC-6 | (25) 50-150 |
| JJC-7 | 120-240 |
| JJC-7-1 | 120-240 (300) |
| Model | Branch Line Cross-section (mm²) |
|---|---|
| JJC-888 | 0.75-6 |
| JJC-1 | 1.5-10 |
| JJC-2 | 1.5-10 |
| JJC-3 | (2.5) 4-35 (50) |
| JJC-3-1 | (2.5) 4-25 (35) |
| JJC-4 | (2.5) 4-35 (25-50) |
| JJC-5 | (16) 25-95 |
| JJC-6 | (25) 50-150 |
| JJC-7 | 25-120 (150) |
| JJC-7-1 | 10-25 (70) |
