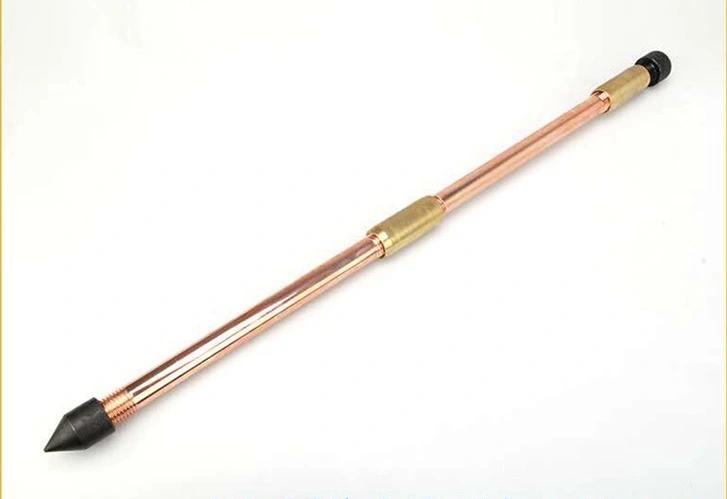

Angled view of an assembled copper-plated ground rod with pointed tip.

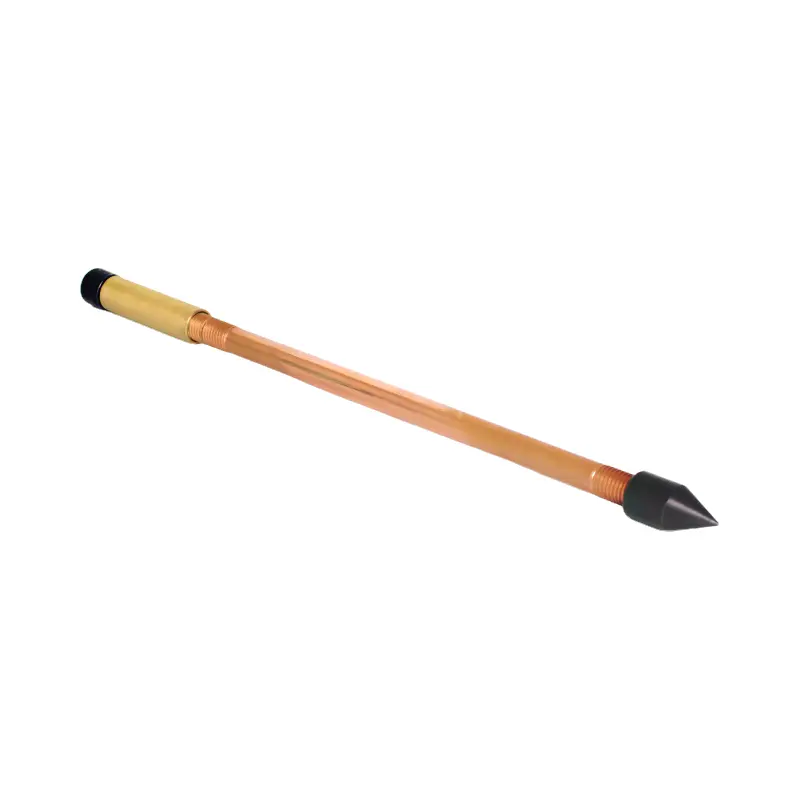

Copper-plated ground rod with pointed tip and threaded top for electrical grounding.

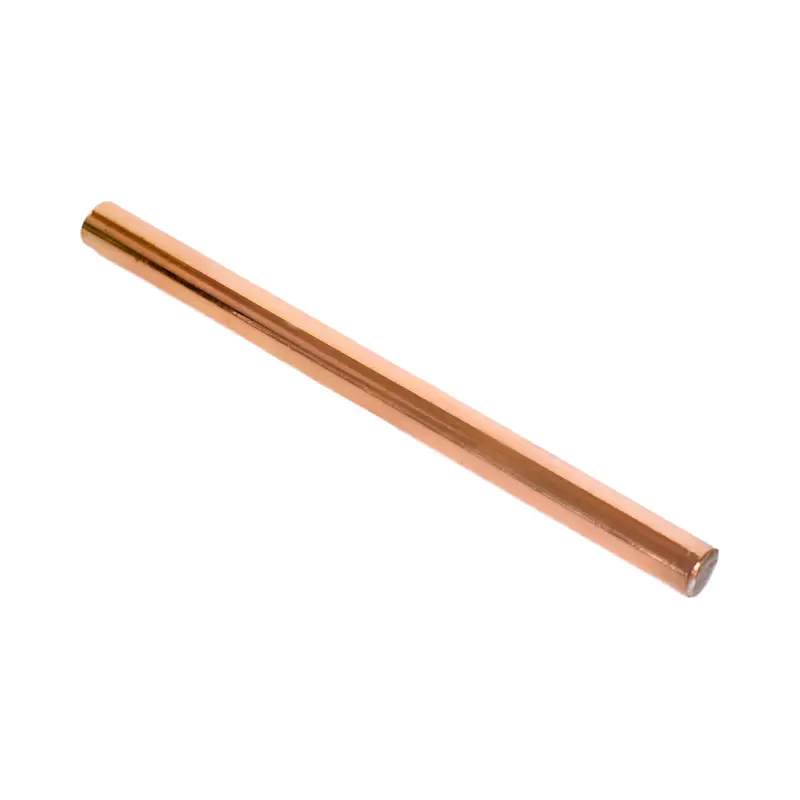

Straight section of pure copper-plated steel rod.

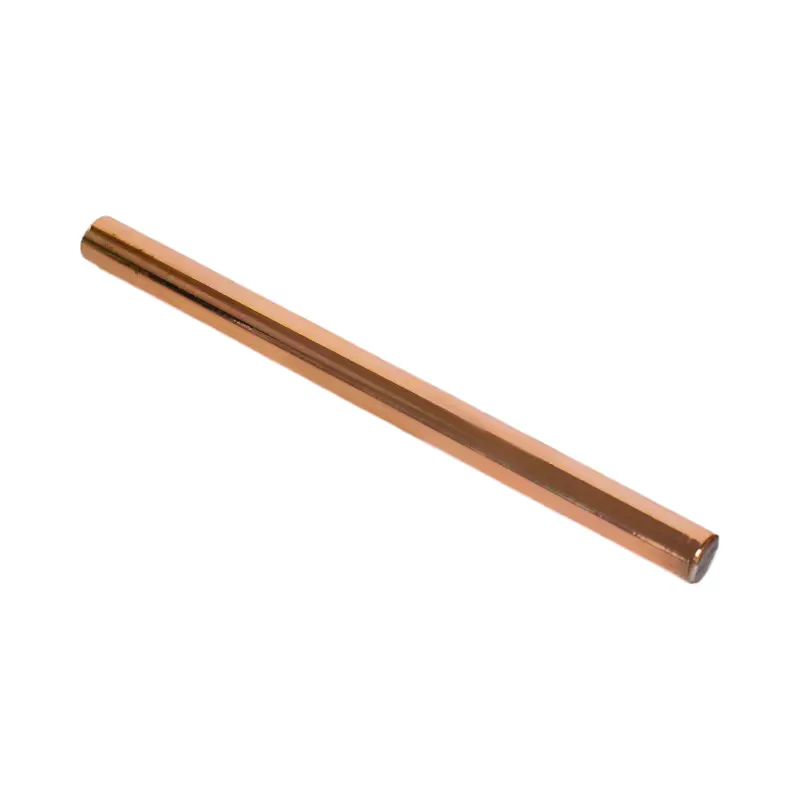

Segment of robust copper-plated earthing rod material.

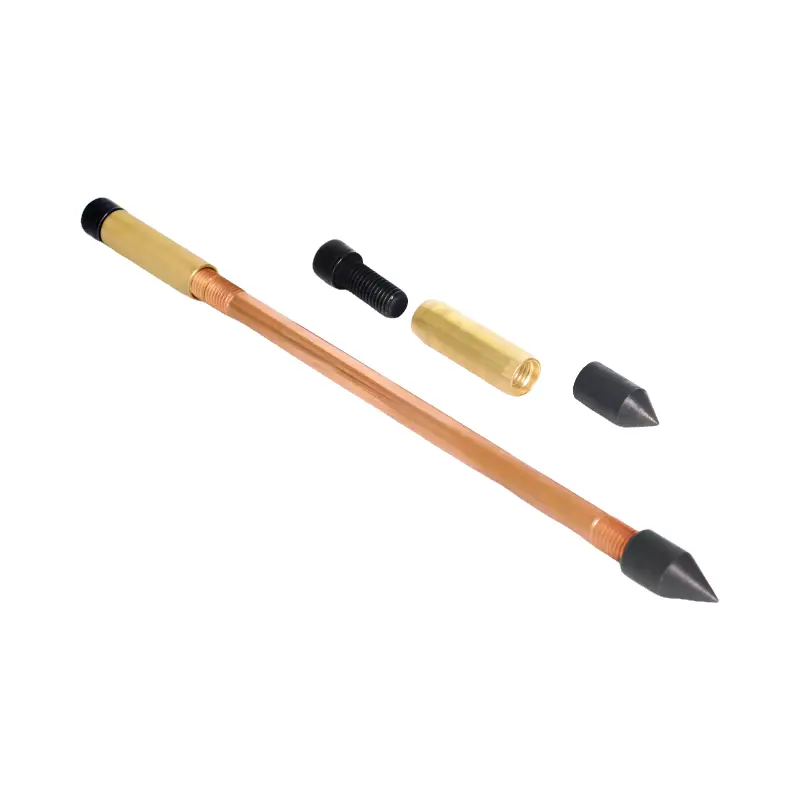

Disassembled copper-plated ground rod components: rod, coupler, driving tip, and bolt.

Copper-Plated Ground Rod

Discover our premium Copper-Plated Ground Rods, an innovative bimetallic solution for reliable and long-lasting electrical earthing. Engineered with a low-carbon steel core uniformly coated with 99.95% pure copper via electroplating, our rods comply with standards like UL467, BS665, and BS7430. They combine the strength of steel with the superior conductivity and corrosion resistance of copper, ensuring a service life exceeding 50 years and flawless performance even when bent 180°. Ideal for robust grounding systems.

Diameter Specifications

Model No.	Diameter (mm)	Diameter (inches)
E-8	8
E-9.5	9.5	3/8″
E-10	10
E-12.7	12.7	1/2″
E-14	14
E-14.2	14.2	5/8″
E-15.8	15.8
E-16	16
E-17.2	17.2	3/4″
E-18	18
E-19.1	19.1
E-20	20
E-22	22
E-23.2	23.2	1”
E-25	25
E-30	30
E-32	32

Thread Specifications

Model No.	Thread
E-8
E-9.5
E-10
E-12.7
E-14	M16
E-14.2
E-15.8
E-16	M18
E-17.2
E-18	M20
E-19.1	M20
E-20	M22
E-22	M24
E-23.2
E-25	M27
E-30
E-32

Available Lengths (mm)

Model No.	Available Lengths (mm)
E-8	1200, 1500, 1800, 2400, 2500, 3000
E-9.5	1200, 1500, 1800, 2400, 2500, 3000
E-10	1200, 1500, 1800, 2400, 2500, 3000
E-12.7	1200, 1500, 1800, 2400, 2500, 3000
E-14	1200, 1500, 1800, 2400, 2500, 3000
E-14.2	1200, 1500, 1800, 2400, 2500, 3000
E-15.8	1200, 1500, 1800, 2400, 2500, 3000
E-16	1200, 1500, 1800, 2400, 2500, 3000
E-17.2	1200, 1500, 1800, 2400, 2500, 3000
E-18	1200, 1500, 1800, 2400, 2500, 3000
E-19.1	1200, 1500, 1800, 2400, 2500, 3000
E-20	1200, 1500, 1800, 2400, 2500, 3000
E-22	1200, 1500, 1800, 2400, 2500, 3000
E-23.2	1200, 1500, 1800, 2400, 2500, 3000
E-25	1200, 1500, 1800, 2400, 2500, 3000
E-30	1200, 1500, 1800, 2400, 2500, 3000
E-32	1200, 1500, 1800, 2400, 2500, 3000

Copper Layer Thickness

Model No.	Copper Layer Thickness
E-8	0.025–1mm
E-9.5	0.025–1mm
E-10	0.025–1mm
E-12.7	0.025–1mm
E-14	0.025–1mm
E-14.2	0.025–1mm
E-15.8	0.025–1mm
E-16	0.025–1mm
E-17.2	0.025–1mm
E-18	0.025–1mm
E-19.1	0.025–1mm
E-20	0.025–1mm
E-22	0.025–1mm
E-23.2	0.025–1mm
E-25	0.025–1mm
E-30	0.025–1mm
E-32	0.025–1mm

Weight per Meter

Model No.	Weight per Meter (kg/m)
E-8	0.4kg/m
E-9.5	0.56kg/m
E-10	0.62kg/m
E-12.7	1kg/m
E-14	1.21kg/m
E-14.2	1.24kg/m
E-15.8	1.54kg/m
E-16	1.58kg/m
E-17.2	1.83kg/m
E-18	2kg/m
E-19.1	2.25kg/m
E-20	2.47kg/m
E-22	3kg/m
E-23.2	3.32kg/m
E-25	3.86kg/m
E-30	5.56kg/m
E-32	6.32kg/m

Category Earthing Rod
